(52 points) Difficulty (4/5) A beam is loaded and supported as shown, with F = 3.2 kN, M1M1 = 2.5 kN*m, M2M2 = 1.8 kN*m,

[answerhappygod]

(52 points) Difficulty (4/5)
A beam is loaded and supported as shown, with F = 3.2kN, M1M1 = 2.5 kN*m, M2M2 = 1.8kN*m, w1w1 = 3.5 kN/m, and w2w2 = 5.4 kN/m.
The dimensions on the figure are a = 1.7 m, b = 1.6 m, c = 2.5m, and d = 1.7 m.
Draw and label shear and bending moment diagrams for this beam.From your diagrams, enter the following information.
Limits of an interval are defined anywhere there is a change inthe loading or the shear diagram becomes zero. The first intervalis on the left and subsequent intervals are in order moving to theright.

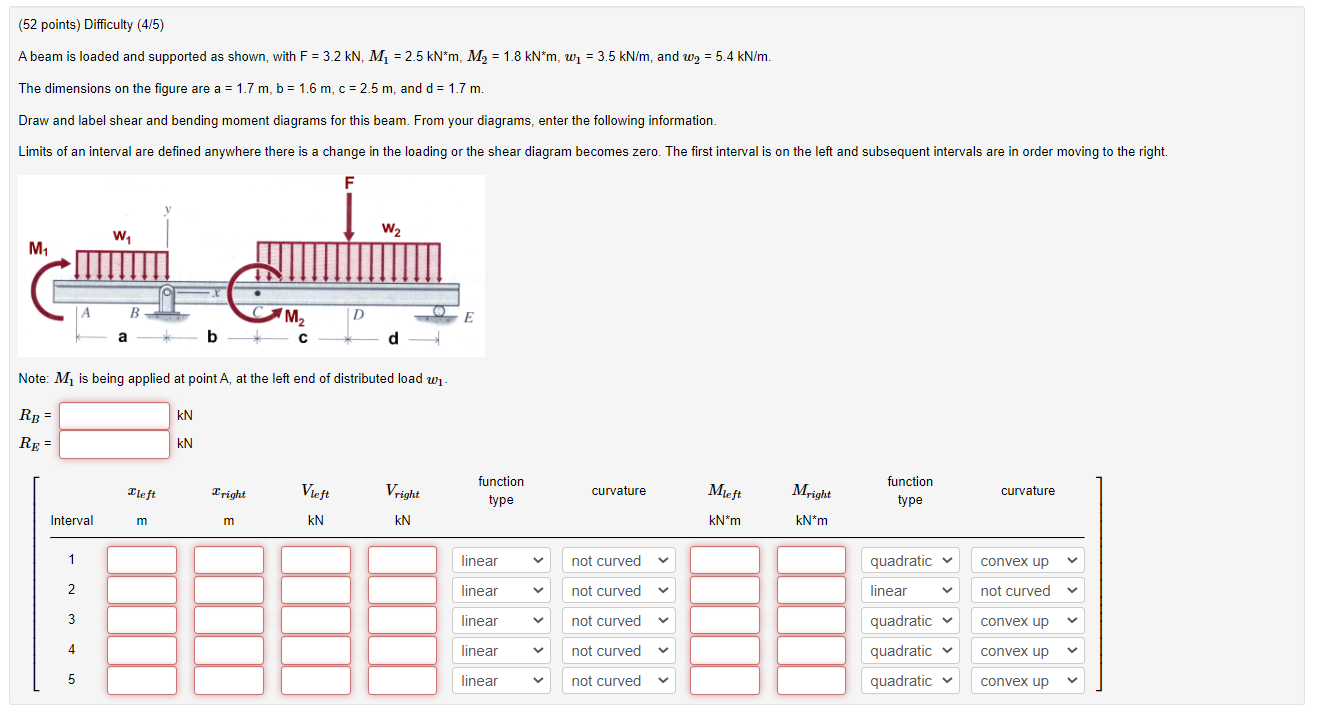

52 Points Difficulty 4 5 A Beam Is Loaded And Supported As Shown With F 3 2 Kn M1m1 2 5 Kn M M2m2 1 8 Kn M 1 (143.87 KiB) Viewed 15 times

A beam is loaded and supported as shown, with F=3.2kN,M1​=2.5kN∗ m,M2​=1.8kN∗ m,w1​=3.5kN/m, and w2​=5.4kN/m. The dimensions on the figure are a=1.7 m,b=1.6 m,c=2.5 m, and d=1.7 m. Draw and label shear and bending moment diagrams for this beam. From your diagrams, enter the following information. Note: M1​ is being applied at point A, at the left end of distributed load w1​. RB​=RE​=​kNkN​
