The turbine develops 150 kW of power, which is transmitted to the gears such that C receives 70% and D receives 30%. The

Post by answerhappygod »

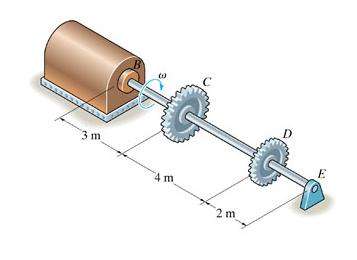

The turbine develops 150 kW of power, which istransmitted to the gears such that C receives 70%and D receives 30%. The rotation ofthe 100-mm-diameter A-36 steel shaftis ωomega = 300 rev/min . The journalbearing at E allows the shaft to turn freely about itsaxis. The shear modulus of elasticity for A-36 steelis 75 GPa. Determine the absolute maximum shearstress in the shaft. Determine the angle of twist ofend E of the shaft relative to B.
The Turbine Develops 150 Kw Of Power Which Is Transmitted To The Gears Such That C Receives 70 And D Receives 30 The 1
The Turbine Develops 150 Kw Of Power Which Is Transmitted To The Gears Such That C Receives 70 And D Receives 30 The 1 (55.52 KiB) Viewed 14 times
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
