This is Control Engineering subject please help me as soon aspossible thanks.
This Is Control Engineering Subject Please Help Me As Soon As Possible Thanks 1 (38.28 KiB) Viewed 19 times

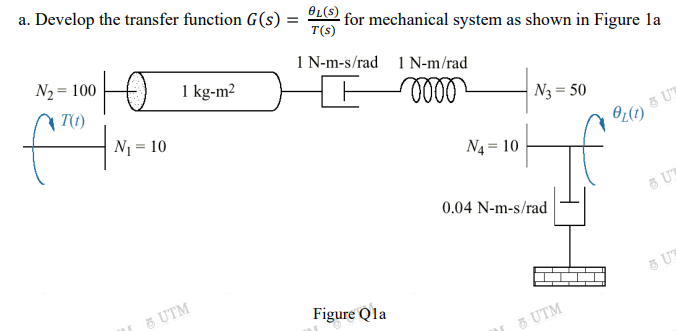

a. Develop the transfer function G(s)=T(s)θL(s) for mechanical system as shown in Figure 1a
b. The unit step response of a first order system is shown below: Develop the transfer function of this system. Please inckude detailed steps. Hint: Please find the time constant and the constatnt gain (the numerator).
