Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to t

Post by answerhappygod »

Required Information Note This Is A Multi Part Question Once An Answer Is Submitted You Will Be Unable To Return To T 1
Required Information Note This Is A Multi Part Question Once An Answer Is Submitted You Will Be Unable To Return To T 1 (433.28 KiB) Viewed 17 times

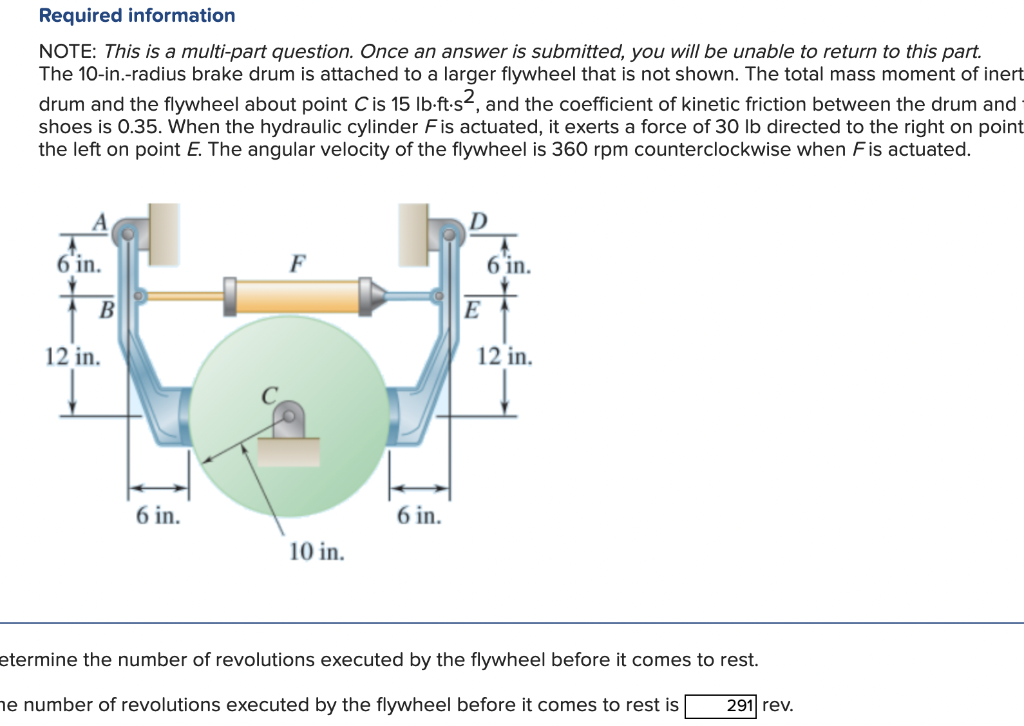

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. The 10-in.-radius brake drum is attached to a larger flywheel that is not shown. The total mass moment iner drum and the flywheel about point C is 15lb⋅ft⋅s2, and the coefficient of kinetic friction between the drum and shoes is 0.35. When the hydraulic cylinder F is actuated, it exerts a force of 30lb directed to the right on poin the left on point E. The angular velocity of the flywheel is 360rpm counterclockwise when F is actuated. etermine the number of revolutions executed by the flywheel before it comes to rest. he number of revolutions executed by the flywheel before it comes to rest is rev.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
