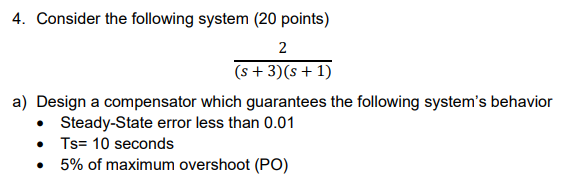

Consider The Following System 20 Points Design A Compensator Which Guarantees The Following System S Behavior Steady 1 (25.97 KiB) Viewed 35 times
Design a compensator which guarantees the following system’sbehavior
• Steady-State error less than 0.01
• Ts= 10 seconds
• 5% of maximum overshoot (PO)
4. Consider the following system (20 points) (s+3)(s+1)2 a) Design a compensator which guarantees the following system's behavior - Steady-State error less than 0.01 - Ts=10 seconds - 5% of maximum overshoot (PO)
