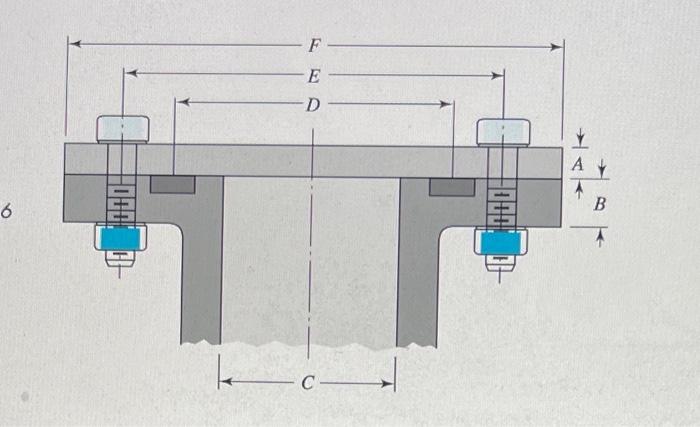

The figure illustrates the non-permanent connection of a steel cylinder head to a grade 30 castiron pressure vessel using N bolts. A confined gasket seal has an effective sealing diameter D. The cylinder stores gas at a maximum pressure pg. For the specifications given in the table for the specific problem assigned, select a suitable bolt length from the preferred sizes in "12 Russell, Burdsall \& Ward, Inc., Metal Forming Specialists, Mentor, Ohio. A-17, then determine the yielding façor of safety np, the load factor nL, and the joint

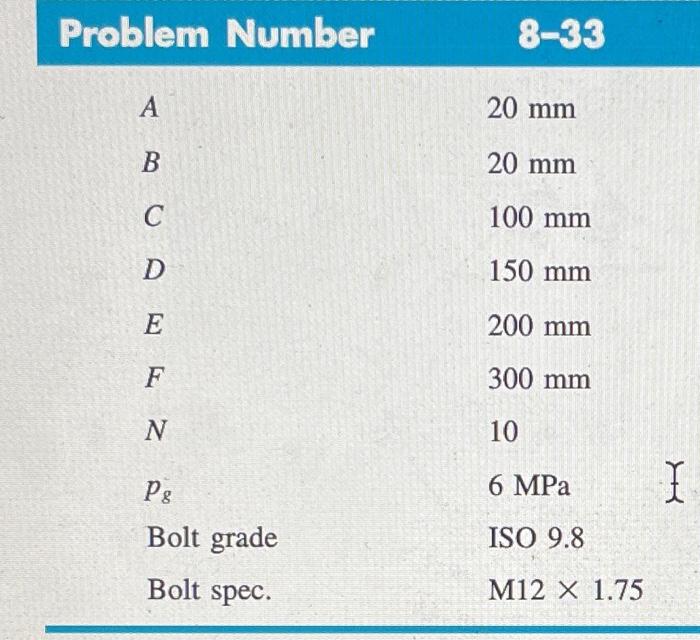

Problem Number 8−33 \begin{tabular}{ll} A & 20 mm \\ \hlineB & 20 mm \\ C & 100 mm \\ D & 150 mm \\ E & 200 mm \\ F & 300 mm \\ N & 10 \\ pg & 6MPa \\ Bolt grade & ISO 9.8 \\ Bolt spec. & M12×1.75 \\ \hline \end{tabular}
