Various forces are applied to the piping arrangement shown inthe figure, all dimensionsshown are in mm. If each section of (hollow) pipe is known to havean internal diameter of36mm and an external diameter of 42mma)Determine the stress state of point H which is located at the topand outside of thepipe (as shown in the figure).

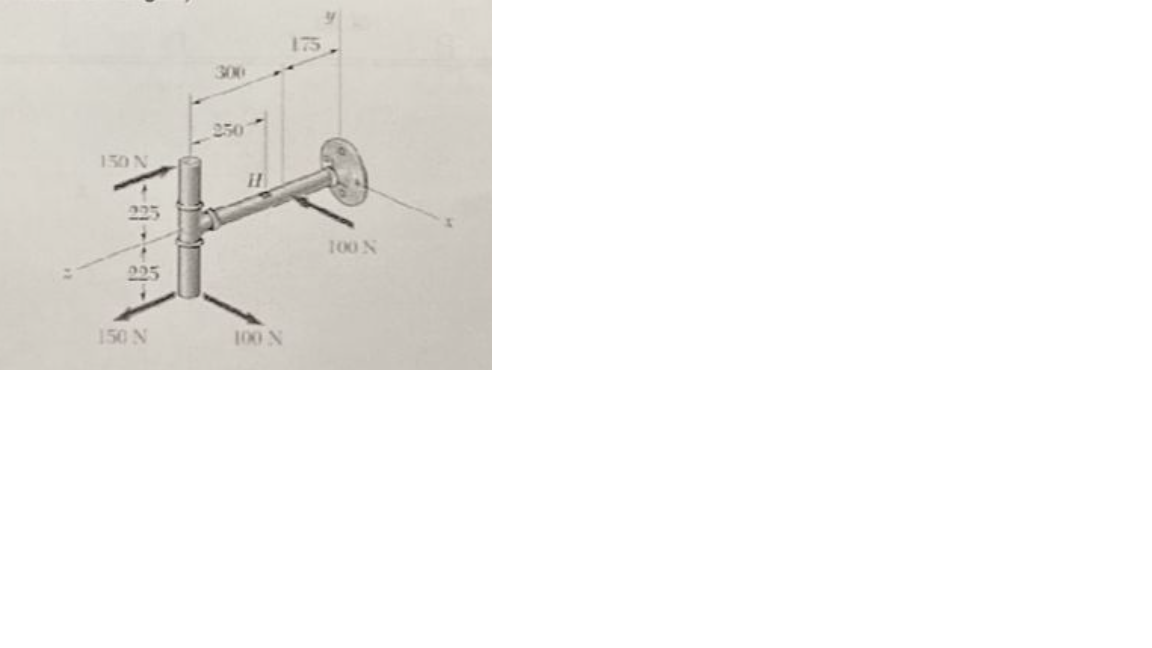

Various Forces Are Applied To The Piping Arrangement Shown In The Figure All Dimensions Shown Are In Mm If Each Sectio 1 (154.61 KiB) Viewed 33 times
Various Forces Are Applied To The Piping Arrangement Shown In The Figure All Dimensions Shown Are In Mm If Each Sectio 2 (94.94 KiB) Viewed 33 times
tht
