a) Determine the fatigue factors of safety at some potentiallycritical locations.
- The Shaft Shown In The Figure Driven By A Gear In The Right Keyway Drives A Fan In The Left Keyway And Is Supported B 1 (87.94 KiB) Viewed 65 times
The shaft shown in the figure, driven by a gear in the right keyway, drives a fan in the left keyway, and is supported b
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The shaft shown in the figure, driven by a gear in the right keyway, drives a fan in the left keyway, and is supported b

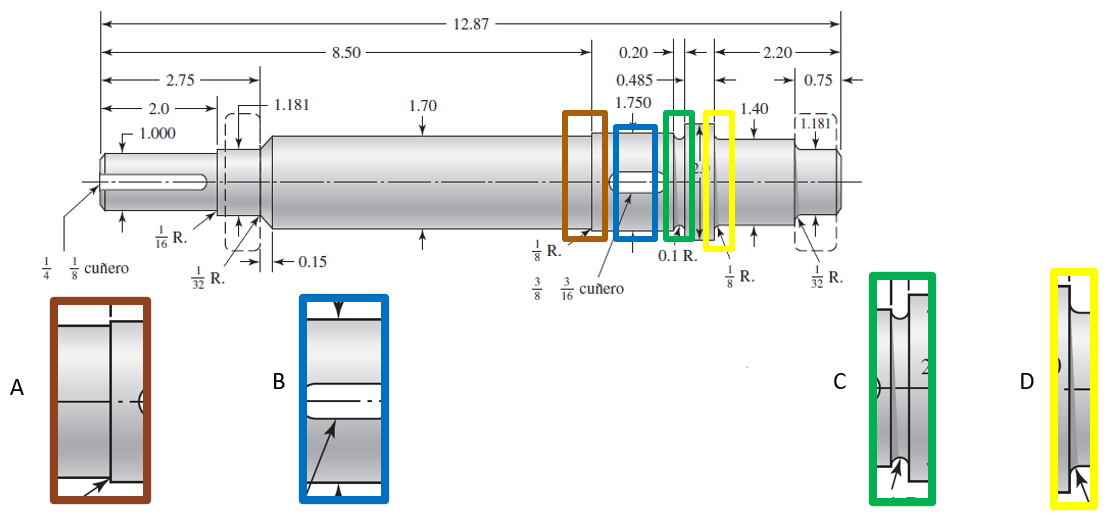

The shaft shown in the figure, driven by a gear in the rightkeyway, drives a fan in the left keyway, and is supported by twodeep groove ball bearings.The shaft is made of AISI 1020 cold drawn steel. At steady statespeed, the gear transmits a radial load of 230 lbf and a tangentialload of 633 lbf with an 8 in. pitch diameter.
a) Determine the fatigue factors of safety at some potentiallycritical locations.
B
a) Determine the fatigue factors of safety at some potentiallycritical locations.
B
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
