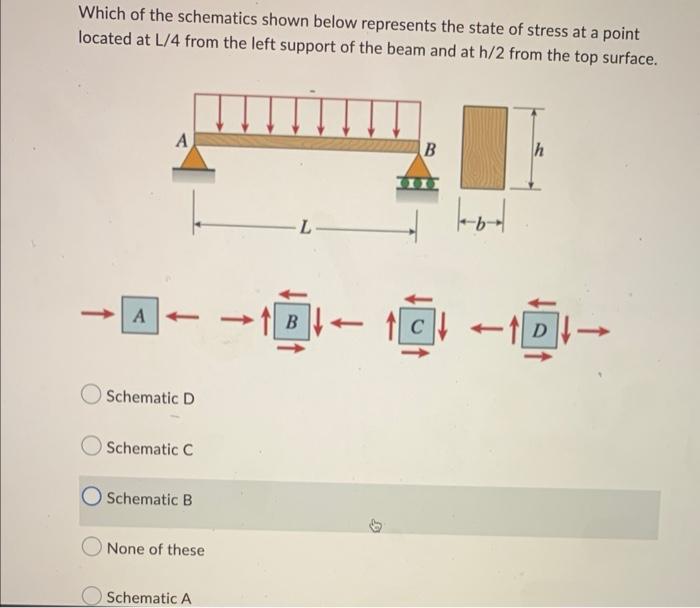

Which of the schematics shown below represents the state of stress at a point located at L/4 from the left support of the beam and at h/2 from the top surface. Schematic D Schematic C Schematic B None of these Schematic A

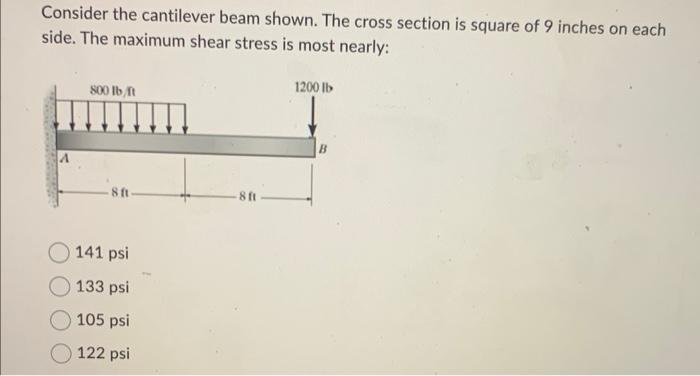

Consider the cantilever beam shown. The cross section is square of 9 inches on each side. The maximum shear stress is most nearly: 141psi 133psi 105psi 122psi
