- 1 Three Forces Are Applied To A Mechanical Link As Shown 30 Points A Express The 500lb Force As A Vector In Terms O 1 (74.42 KiB) Viewed 34 times
1. Three forces are applied to a mechanical link as shown. (30 points) a) Express the 500lb force as a vector in terms o
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. Three forces are applied to a mechanical link as shown. (30 points) a) Express the 500lb force as a vector in terms o

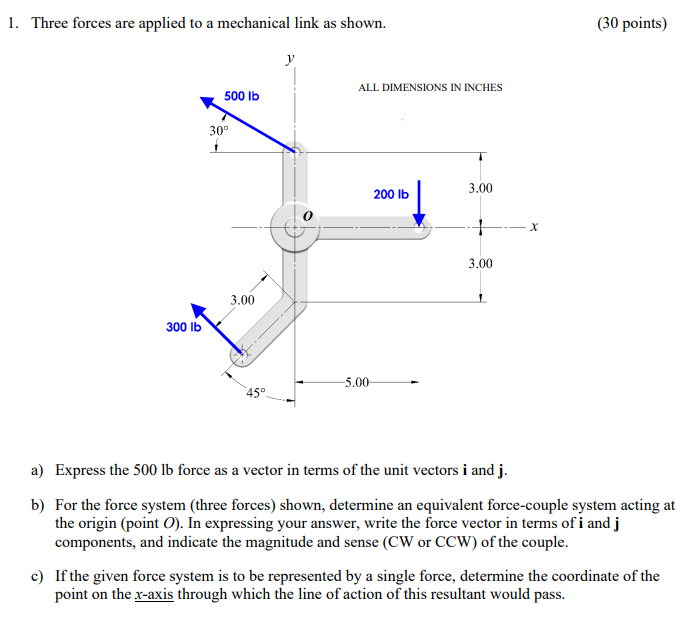

1. Three forces are applied to a mechanical link as shown. (30 points) a) Express the 500lb force as a vector in terms of the unit vectors i and j. b) For the force system (three forces) shown, determine an equivalent force-couple system acting at the origin (point O ). In expressing your answer, write the force vector in terms of i and j components, and indicate the magnitude and sense (CW or CCW) of the couple. c) If the given force system is to be represented by a single force, determine the coordinate of the point on the x-axis through which the line of action of this resultant would pass.
