The attached wheels roll without slipping on the plates A and B, which are moving in opposite directions as shown. If vA

Post by answerhappygod »

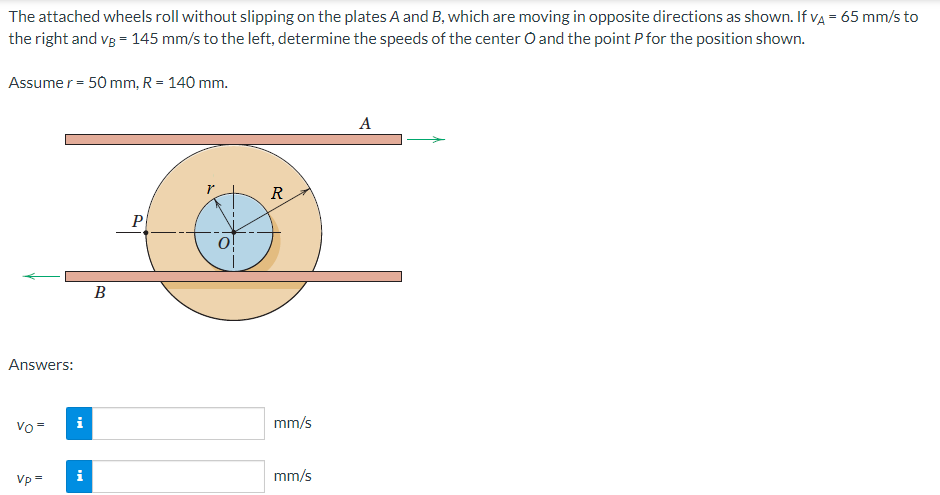

The Attached Wheels Roll Without Slipping On The Plates A And B Which Are Moving In Opposite Directions As Shown If Va 1
The Attached Wheels Roll Without Slipping On The Plates A And B Which Are Moving In Opposite Directions As Shown If Va 1 (24.41 KiB) Viewed 32 times
The attached wheels roll without slipping on the plates A and B, which are moving in opposite directions as shown. If vA​=65 mm/s to the right and vB​=145 mm/s to the left, determine the speeds of the center O and the point P for the position shown. Assume r=50 mm,R=140 mm Answers: vO​= mm/s vP​= mm/s
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
