QUESTION 3: FORCED CONVECTION Water is to be heated from 10∘C to 80∘C as it flows through a 15 mm internal-diameter, 13

Post by answerhappygod »

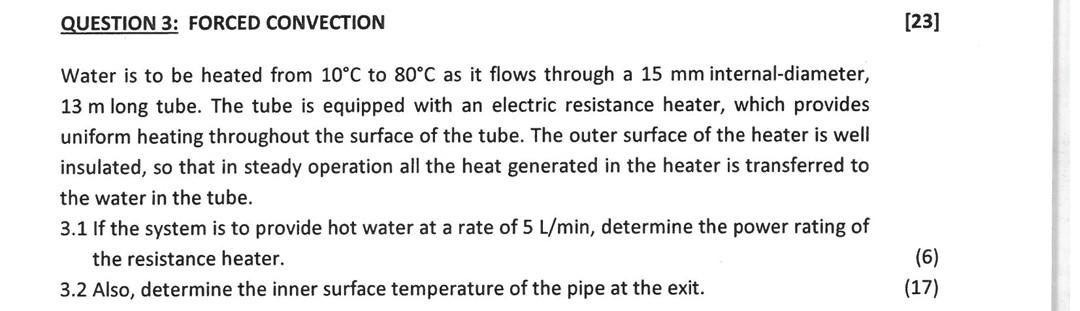

Question 3 Forced Convection Water Is To Be Heated From 10 C To 80 C As It Flows Through A 15 Mm Internal Diameter 13 1
Question 3 Forced Convection Water Is To Be Heated From 10 C To 80 C As It Flows Through A 15 Mm Internal Diameter 13 1 (50.48 KiB) Viewed 39 times
QUESTION 3: FORCED CONVECTION Water is to be heated from 10∘C to 80∘C as it flows through a 15 mm internal-diameter, 13 m long tube. The tube is equipped with an electric resistance heater, which provides uniform heating throughout the surface of the tube. The outer surface of the heater is well insulated, so that in steady operation all the heat generated in the heater is transferred to the water in the tube. 3.1 If the system is to provide hot water at a rate of 5 L/min, determine the power rating of the resistance heater. 3.2 Also, determine the inner surface temperature of the pipe at the exit.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
