Having trouble finding the Temperature of the exchanger outlets in order to build an equation for heat transfer..
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Having trouble finding the Temperature of the exchanger outlets in order to build an equation for heat transfer..
Having trouble finding the Temperature of the exchanger outletsin order to build an equation for heat transfer..

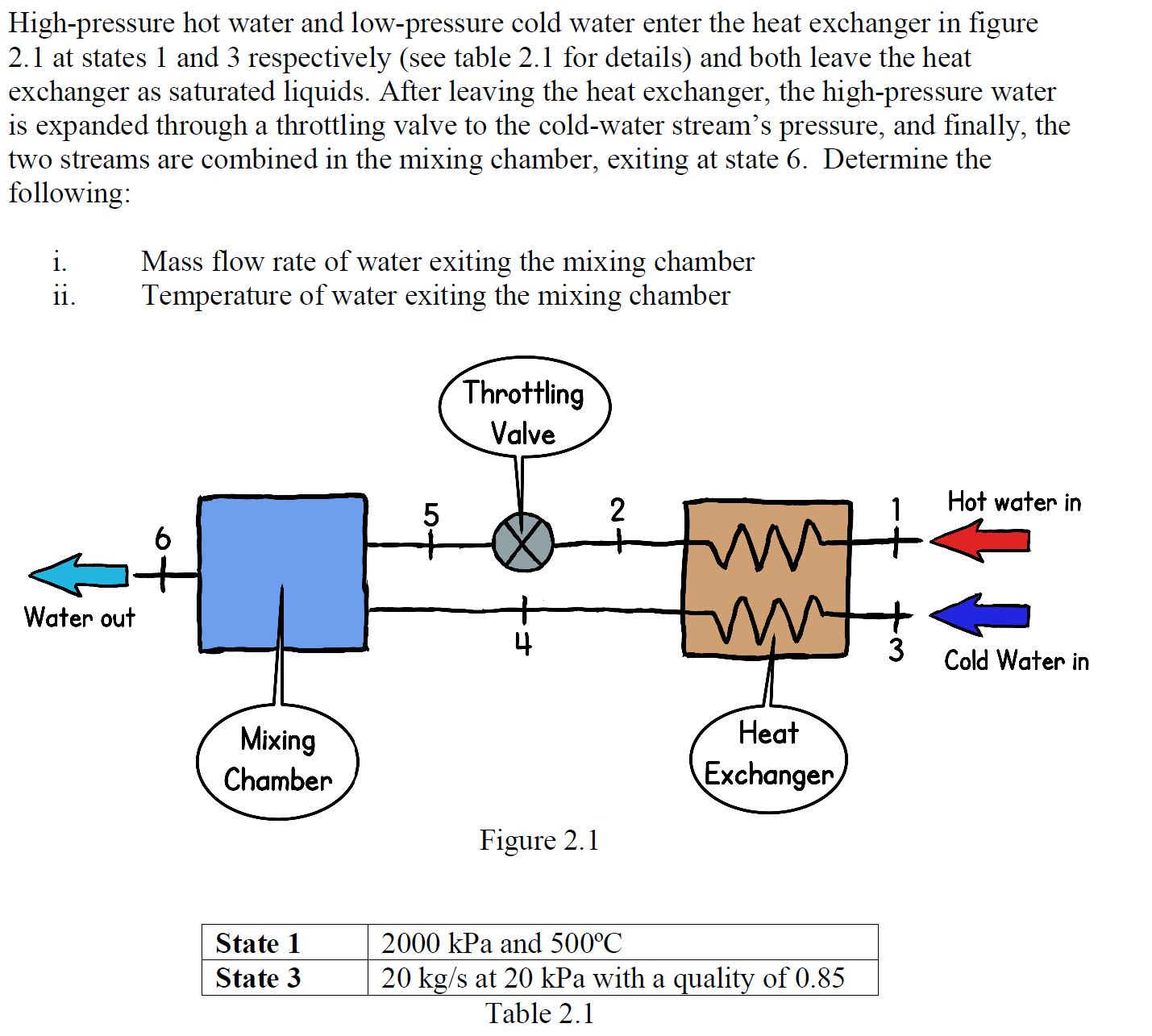

High-pressure hot water and low-pressure cold water enter the heat exchanger in figure 2.1 at states 1 and 3 respectively (see table 2.1 for details) and both leave the heat exchanger as saturated liquids. After leaving the heat exchanger, the high-pressure water is expanded through a throttling valve to the cold-water stream's pressure, and finally, the two streams are combined in the mixing chamber, exiting at state 6 . Determine the following: i. Mass flow rate of water exiting the mixing chamber ii. Temperature of water exiting the mixing chamber
High-pressure hot water and low-pressure cold water enter the heat exchanger in figure 2.1 at states 1 and 3 respectively (see table 2.1 for details) and both leave the heat exchanger as saturated liquids. After leaving the heat exchanger, the high-pressure water is expanded through a throttling valve to the cold-water stream's pressure, and finally, the two streams are combined in the mixing chamber, exiting at state 6 . Determine the following: i. Mass flow rate of water exiting the mixing chamber ii. Temperature of water exiting the mixing chamber
