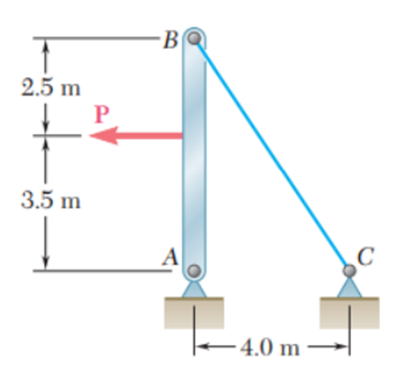

The 4-mm-diameter cable BC is made of a steel with E = 200 GPa.Knowing that the maximum stress in the cable must not exceed 190MPa and that the elongation of the cable must not exceed 6 mm, findthe maximum load P that can be applied as shown.
a. Calculate P based on allowable stress in the cable σ = 190MPa
b. Calculate P based on allowable elongation of the cable δ = 6mm
c. Maximum P?
