can you please answer this dynamic question
can you please answer this dynamic question

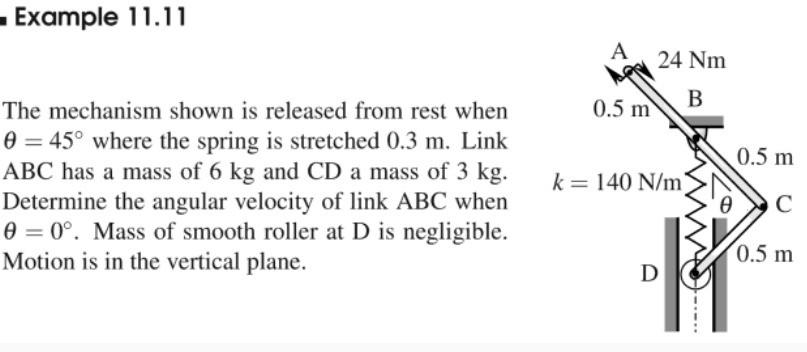

The mechanism shown is released from rest when θ=45∘ where the spring is stretched 0.3 m. Link ABC has a mass of 6 kg and CD a mass of 3 kg. Determine the angular velocity of link ABC when θ=0∘. Mass of smooth roller at D is negligible. Motion is in the vertical plane.
The mechanism shown is released from rest when θ=45∘ where the spring is stretched 0.3 m. Link ABC has a mass of 6 kg and CD a mass of 3 kg. Determine the angular velocity of link ABC when θ=0∘. Mass of smooth roller at D is negligible. Motion is in the vertical plane.
