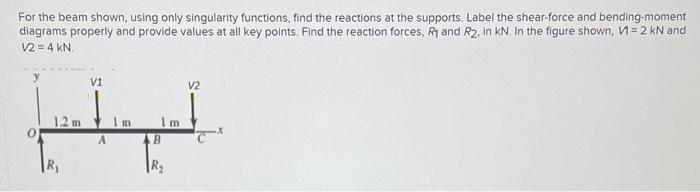

For the beam shown, using only singularity functions, find the reactions at the supports. Label the shear-force and bending-moment diagrams properly and provide values at all key points. Find the reaction forces. R1 and R2. in kN. In the figure shown, M=2kN and V=4kN.
Reactions force R1 is kN and reaction force R2 is kN

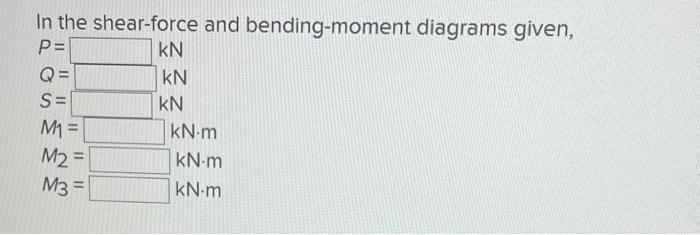

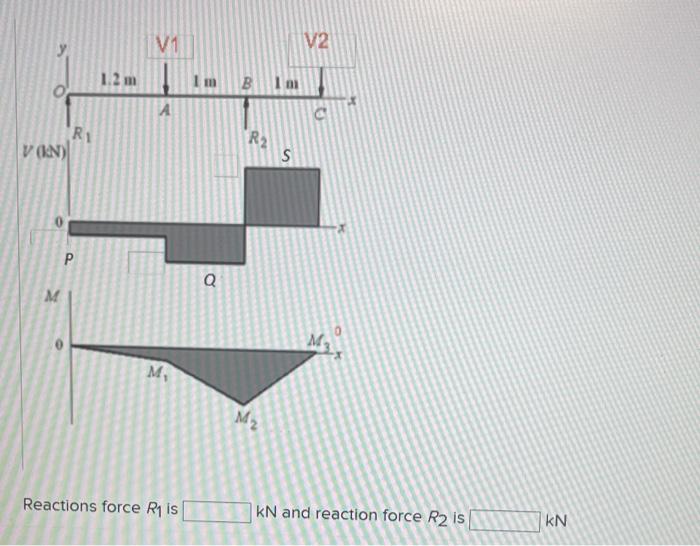

In the shear-force and bending-moment diagrams given, P=Q=S=M1=M2=M3=kNkNkNkN⋅mkN⋅mkN⋅m
