Q2. For the beam and loading shown: a) Find the reaction forces at A and B. b) Draw shear and Bending moment diagram. c)

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q2. For the beam and loading shown: a) Find the reaction forces at A and B. b) Draw shear and Bending moment diagram. c)

Post by answerhappygod »

Q2 For The Beam And Loading Shown A Find The Reaction Forces At A And B B Draw Shear And Bending Moment Diagram C 1
Q2 For The Beam And Loading Shown A Find The Reaction Forces At A And B B Draw Shear And Bending Moment Diagram C 1 (24.31 KiB) Viewed 32 times

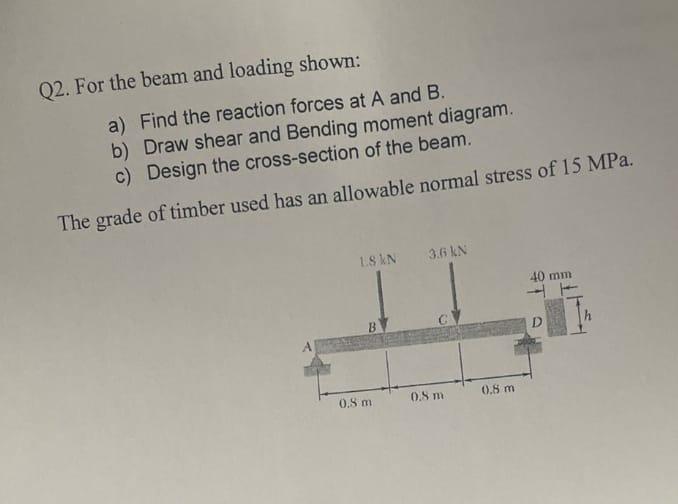

Q2. For the beam and loading shown: a) Find the reaction forces at A and B. b) Draw shear and Bending moment diagram. c) Design the cross-section of the beam. The grade of timber used has an allowable normal stress of 15MPa.
