Consider the given beam and loading where P=176kN. (For W310×60,S=844×103 mm3.) The correct shear diagram is Figure

Post by answerhappygod »

Consider The Given Beam And Loading Where P 176kn For W310 60 S 844 103 Mm3 The Correct Shear Diagram Is Figure 1
Consider The Given Beam And Loading Where P 176kn For W310 60 S 844 103 Mm3 The Correct Shear Diagram Is Figure 1 (108.38 KiB) Viewed 42 times

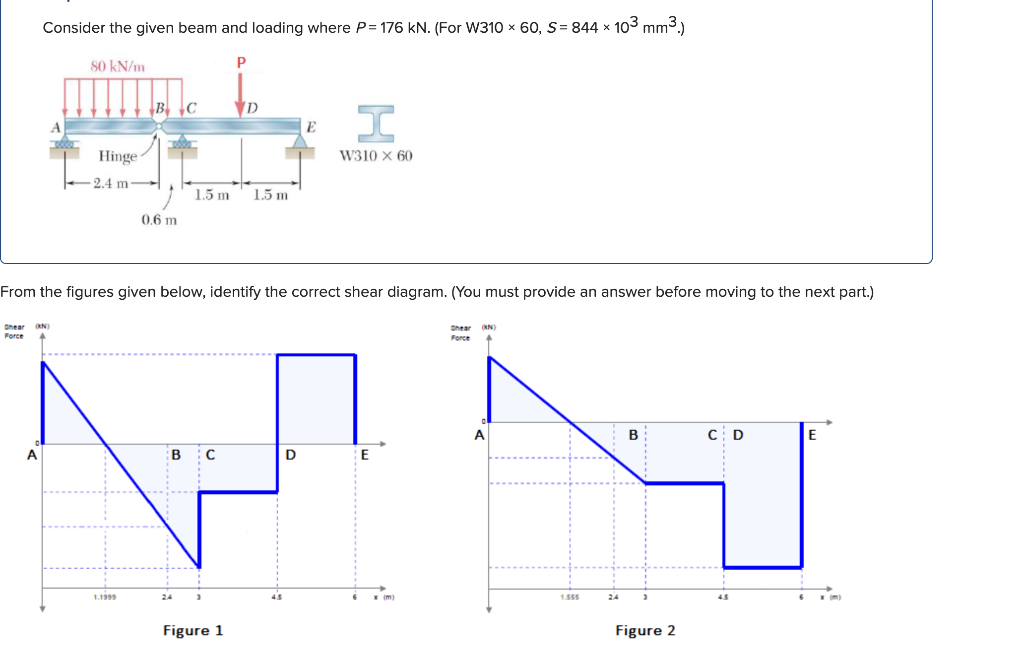

Consider the given beam and loading where P=176kN. (For W310×60,S=844×103 mm3.)
The correct shear diagram is Figure
