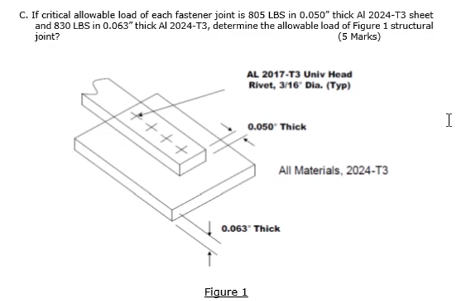

C. If critical allowable load of each fastener joint is 805 LBS in 0.050∘′ thick Al 2024-T3 sheet and 830 LBS in 0.063′′ thick Al 2024-T3, determine the allowable load of Figure 1 structural joint? (5 Marks)

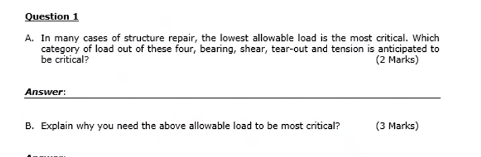

A. In many cases of structure repair, the lowest allowable load is the most critical. Which category of load out of these four, bearing, shear, tear-out and tension is anticipated to be critical? (2 Marks) Answer: B. Explain why you need the above allowable load to be most critical? (3 Marks)
