DO NOT COPY SOMEONE ELSE'S SOLUTION

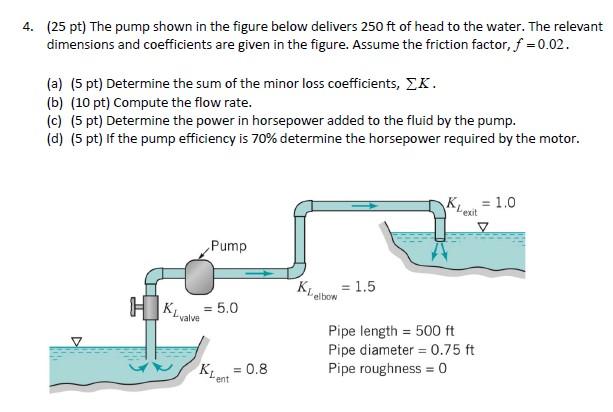

4. (25 pt) The pump shown in the figure below delivers 250ft of head to the water. The relevant dimensions and coefficients are given in the figure. Assume the friction factor, f=0.02. (a) (5 pt ) Determine the sum of the minor loss coefficients, ΣK. (b) (10 pt) Compute the flow rate. (c) (5 pt) Determine the power in horsepower added to the fluid by the pump. (d) (5 pt) If the pump efficiency is 70% determine the horsepower required by the motor.
