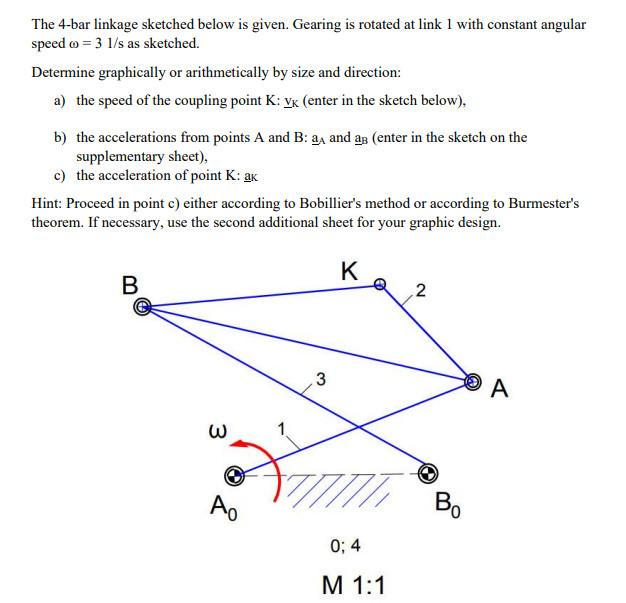

The 4-bar linkage sketched below is given. Gearing is rotated at link 1 with constant angular speed ω=31/s as sketched.
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The 4-bar linkage sketched below is given. Gearing is rotated at link 1 with constant angular speed ω=31/s as sketched.
The 4-bar linkage sketched below is given. Gearing is rotated at link 1 with constant angular speed ω=31/s as sketched. Determine graphically or arithmetically by size and direction: a) the speed of the coupling point K:vK (enter in the sketch below), b) the accelerations from points A and B:aA and B (enter in the sketch on the supplementary sheet), c) the acceleration of point K:aK Hint: Proceed in point c) either according to Bobillier's method or according to Burmester's theorem. If necessary, use the second additional sheet for your graphic design. IVI I.I
