A pump-piping-water tank system has to be designed for a purification plant. Water has to be pumped from a lake and the

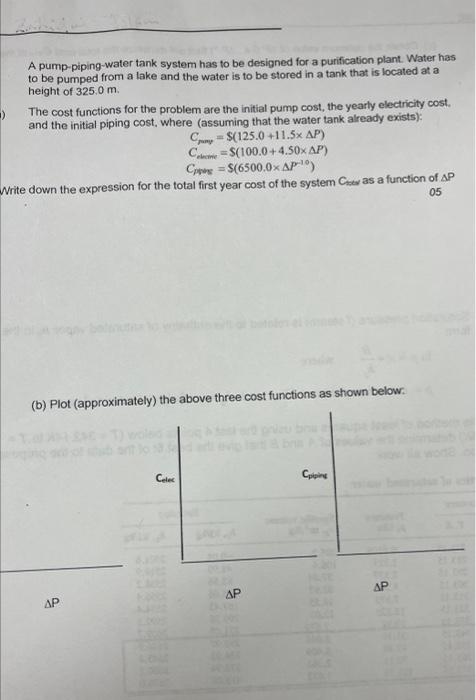

A pump-piping-water tank system has to be designed for a purification plant. Water has to be pumped from a lake and the water is to be stored in a tank that is located at a height of 325.0 m. The cost functions for the problem are the initial pump cost, the yearly electricity cost. and the initial piping cost, where (assuming that the water tank already exists): Cpany =$(125.0+11.5×ΔP)Cevime =$(100.0+4.50×ΔP)Cpins =$(6500.0×ΔP−10) Nrite down the expression for the total first year cost of the system Cwas a function of ΔP 05 (b) Plot (approximately) the above three cost functions as shown below:
