A rotating step shaft is loaded as shown, where the forces FA and FB are constant at 150lbf and 300lbf, respectively,
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A rotating step shaft is loaded as shown, where the forces FA and FB are constant at 150lbf and 300lbf, respectively,

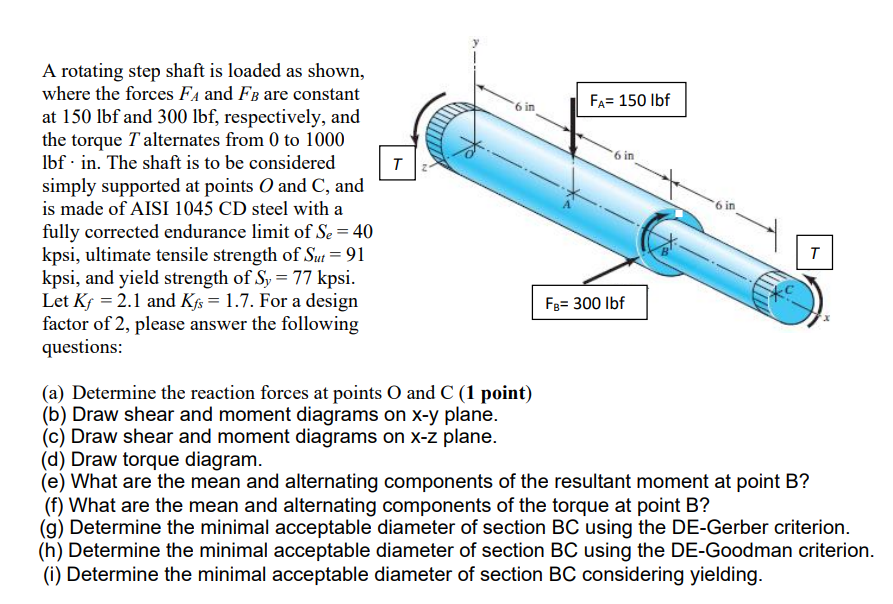

A rotating step shaft is loaded as shown, where the forces FA and FB are constant at 150lbf and 300lbf, respectively, and the torque T alternates from 0 to 1000 lbf⋅ in. The shaft is to be considered simply supported at points O and C, and is made of AISI 1045CD steel with a fully corrected endurance limit of Se=4C kpsi, ultimate tensile strength of Sut=91 kpsi, and yield strength of Sy=77kpsi. Let Kf=2.1 and Kfs=1.7. For a design factor of 2, please answer the following questions: (a) Determine the reaction forces at points O and C (1 point) (b) Draw shear and moment diagrams on x-y plane. (c) Draw shear and moment diagrams on x−z plane. (d) Draw torque diagram. (e) What are the mean and alternating components of the resultant moment at point B ? (f) What are the mean and alternating components of the torque at point B ? (g) Determine the minimal acceptable diameter of section BC using the DE-Gerber criterion. (h) Determine the minimal acceptable diameter of section BC using the DE-Goodman criterion. (i) Determine the minimal acceptable diameter of section BC considering yielding.
