From the figure shown, 1. Draw a load line using the characteristic curve and the circuit shown above with the output eq

Post by answerhappygod »

From The Figure Shown 1 Draw A Load Line Using The Characteristic Curve And The Circuit Shown Above With The Output Eq 1
From The Figure Shown 1 Draw A Load Line Using The Characteristic Curve And The Circuit Shown Above With The Output Eq 1 (56.93 KiB) Viewed 43 times

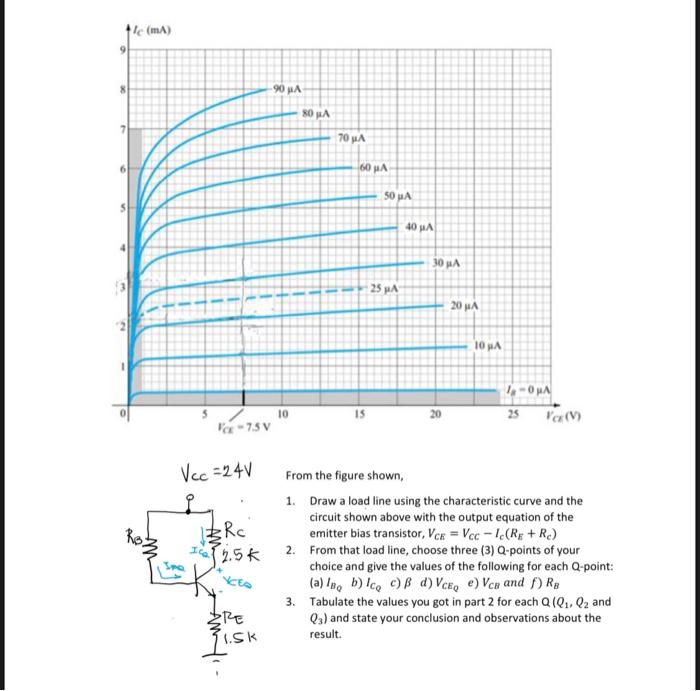

From the figure shown, 1. Draw a load line using the characteristic curve and the circuit shown above with the output equation of the emitter bias transistor, VCE​=VCC​−IC​(RE​+RC​) 2. From that load line, choose three (3) Q-points of your choice and give the values of the following for each Q-point: (a) IBQ​​ b) ICQ​​ c) β d) VCEQ​​ e) VCB​ and f) RB​ 3. Tabulate the values you got in part 2 for each Q(Q1​,Q2​ and Q3​ ) and state your conclusion and observations about the result.
