- Question 4 25 Marks Figure 4 1 Circuit D Figure 4 2 Circuit E A Analyze The Y Parameters For Circuits Shown In Figure 1 (160.43 KiB) Viewed 41 times

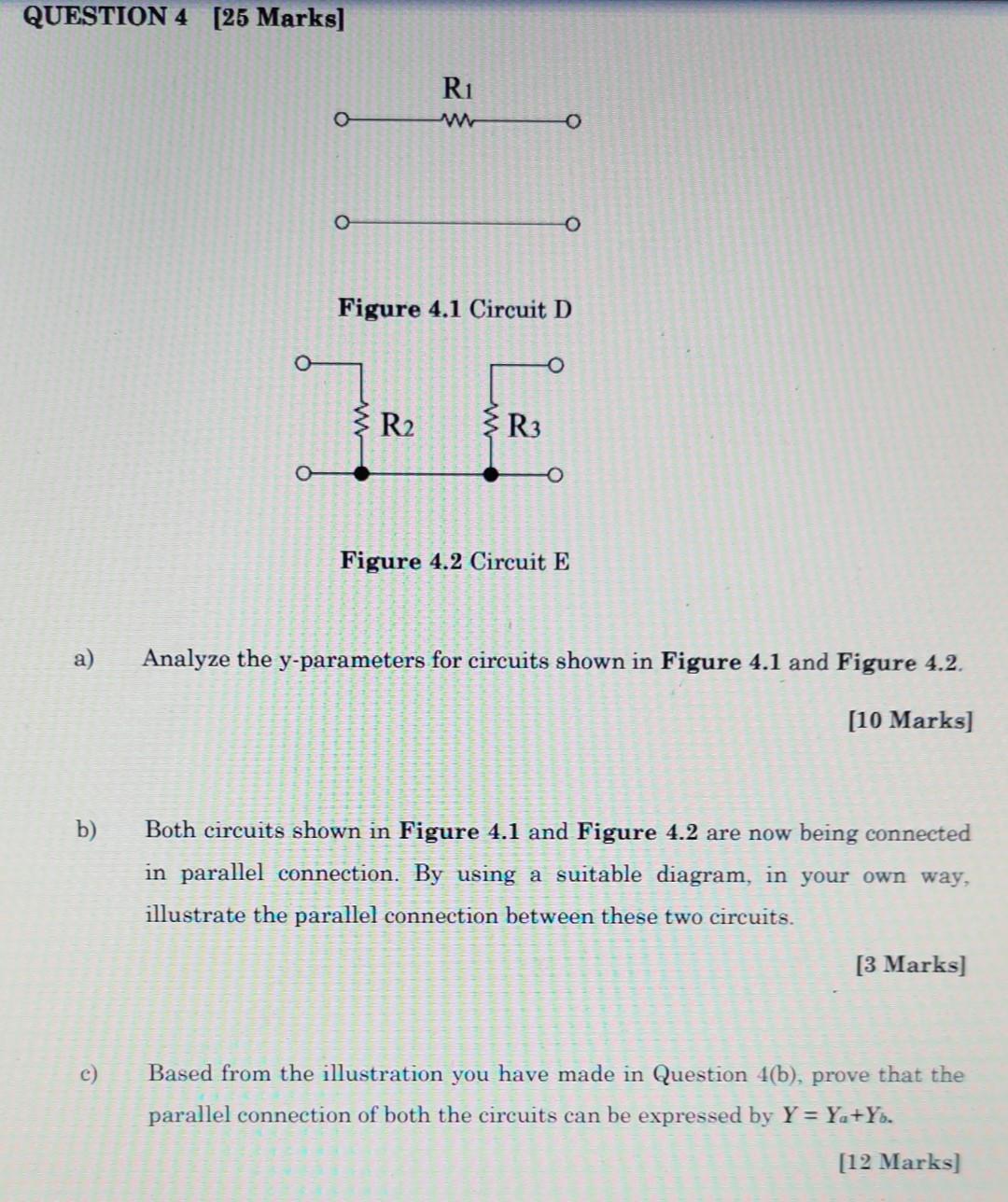

QUESTION 4 [25 Marks] Figure 4.1 Circuit D Figure 4.2 Circuit E a) Analyze the y-parameters for circuits shown in Figure 4.1 and Figure 4.2. [10 Marks] b) Both circuits shown in Figure 4.1 and Figure 4.2 are now being connected in parallel connection. By using a suitable diagram, in your own way, illustrate the parallel connection between these two circuits. [3 Marks] c) Based from the illustration you have made in Question 4(b), prove that the parallel connection of both the circuits can be expressed by Y=Ya+Yb.
