Analyze the circuit B of Figure 2.1 with the Laplace transform to determine its v0​(t), assuming zero initial conditions

[answerhappygod]

Analyze The Circuit B Of Figure 2 1 With The Laplace Transform To Determine Its V0 T Assuming Zero Initial Conditions 1 (37.11 KiB) Viewed 31 times

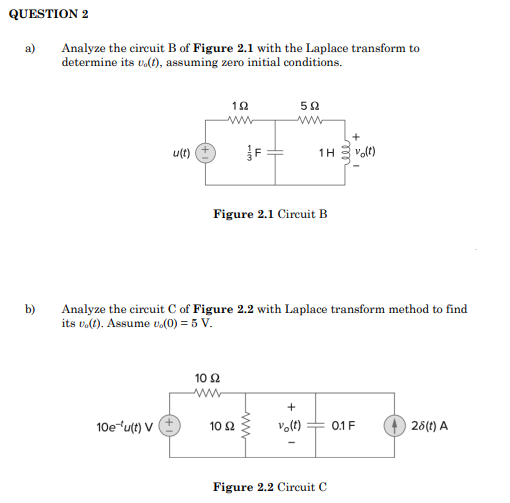

Analyze the circuit B of Figure 2.1 with the Laplace transform to determine its v0​(t), assuming zero initial conditions. Figure 2.1 Circuit B Analyze the circuit C of Figure 2.2 with Laplace transform method to find its v0​(t). Assume v0​(0)=5 V. Figure 2.2 Circuit C
