3. In a given MOS transistor, consider the LD−VDS characteristic curve shown below. Describe (in terms of small or lar

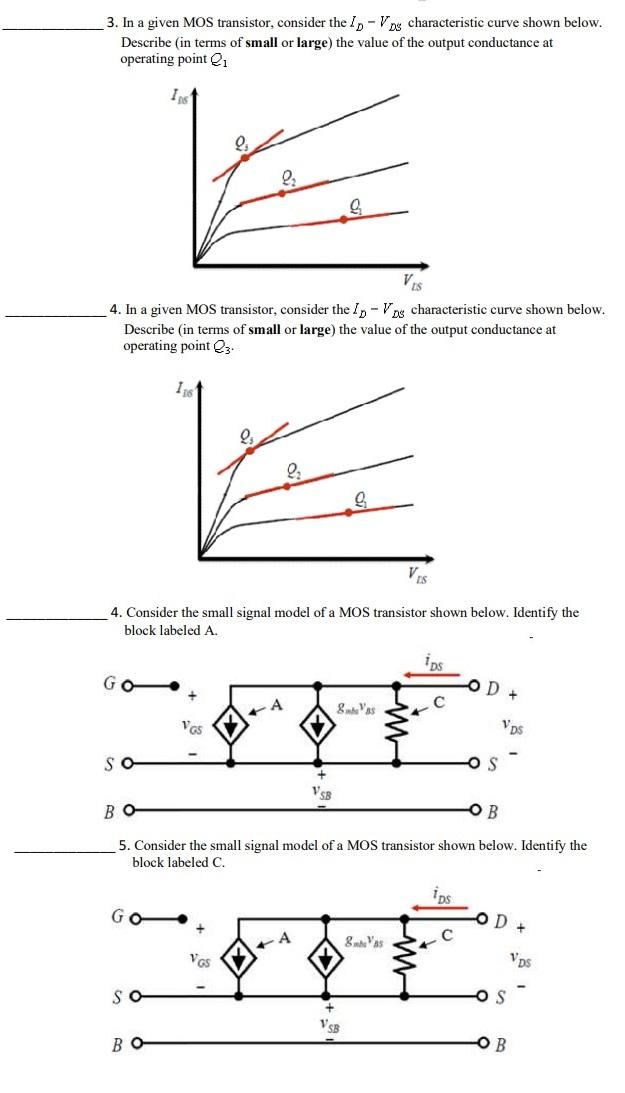

3. In a given MOS transistor, consider the LD−VDS characteristic curve shown below. Describe (in terms of small or large) the value of the output conductance at operating point Q1 4. In a given MOS transistor, consider the ID−VD s characteristic curve shown below. Describe (in terms of small or large) the value of the output conductance at operating point Q3. 4. Consider the small signal model of a MOS transistor shown below. Identify the block labeled A. 5. Consider the small signal model of a MOS transistor shown below. Identify the block labeled C.
