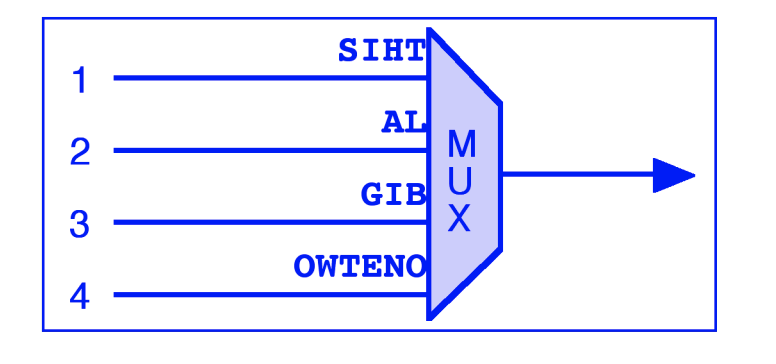

(a) Shown below is a multiplexer. Assume the data is transmittedright most character first (i.e., T is sent first in source 1)
A Shown Below Is A Multiplexer Assume The Data Is Transmitted Right Most Character First I E T Is Sent First In So 1 (17.57 KiB) Viewed 26 times
(1)Draw a diagram showing the character data sent in each of theframes if the MUX is a synchronous TDM multiplexer.
(2) Draw a diagram showing the character data sent in each ofthe frames if the MUX is an asynchronous TDM multiplexer with aframe size of three characters.
