For the datapath below, for the two instructions below, list the values (either decimal or binary) for Read registers 1-

[answerhappygod]

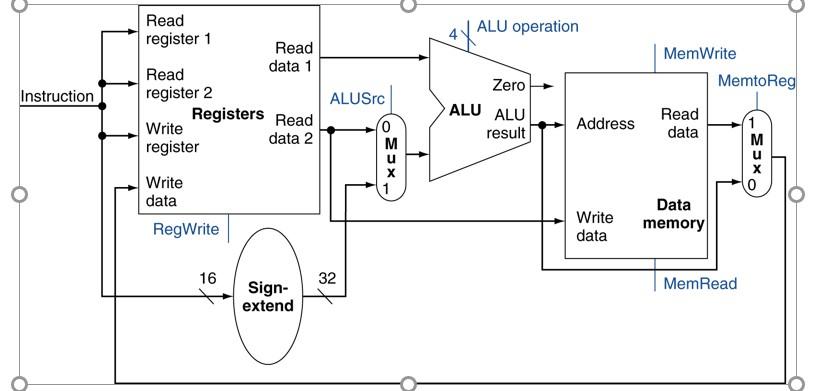

For the datapath below, for the two instructions below, list thevalues (either decimal or binary) for Read registers 1-2, Read data1-2, Write register, Write data, ALUSrc, ALU result, MemtoReg.
a) add $t0, $t1, $t2 # t0-t2: regs#8-10, Values in $t1 = 2, $t2= 3
b) addi $t0, $t1, 14 # $t1 = 1

For The Datapath Below For The Two Instructions Below List The Values Either Decimal Or Binary For Read Registers 1 1 (38.91 KiB) Viewed 20 times
