5.2t Convert Bank Diagrams Create a relational schema for each of the following diagrams using the following notation: T

[answerhappygod]

5.2t Convert Bank Diagrams
Create a relational schema for each of the followingdiagrams using the following notation:
Table names are shown in boldface with attributes listed inparentheses. Primary key are underlined. Forigen keysare indicated by a separate statement that indicartes the tablereferenced on the line immediately following the attributelist.
Here is an example:
Department (DepartmentID, DepartmentName,ManagerID) ManagerID references Employee
Employee (EmployeeID, FirstName, LastName,HireDate, DepartmentID) DepartmentID references Department
PerformanceReview (ReviewID, ReviewDate,ReviewScore, Notes, EmployeeID, ManagerID) EmployeeID references Employee ManagerID references Employee

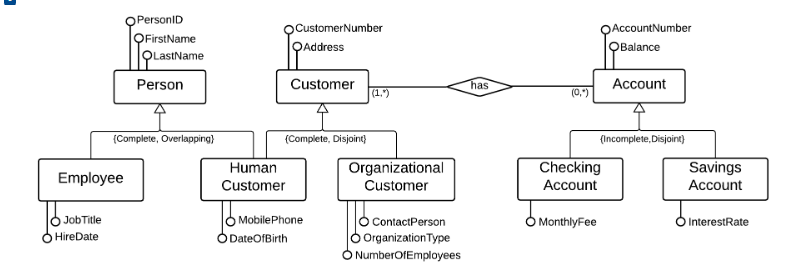

1.

5 2t Convert Bank Diagrams Create A Relational Schema For Each Of The Following Diagrams Using The Following Notation T 1 (42.38 KiB) Viewed 19 times

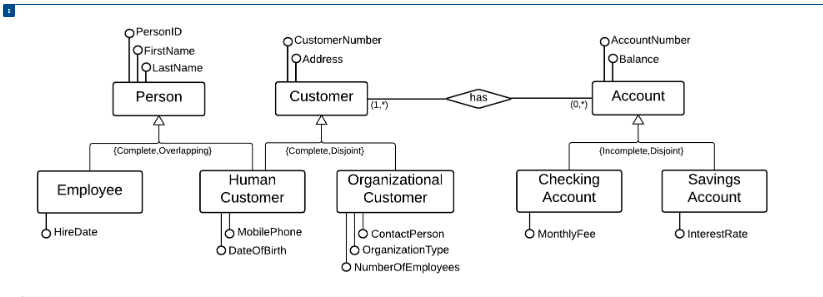

2.

5 2t Convert Bank Diagrams Create A Relational Schema For Each Of The Following Diagrams Using The Following Notation T 2 (42.34 KiB) Viewed 19 times

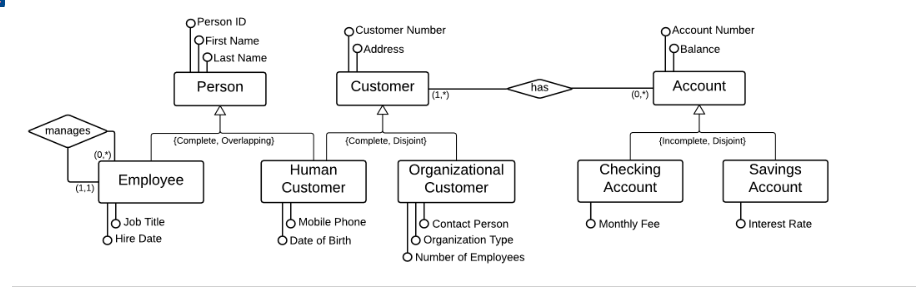

3.

5 2t Convert Bank Diagrams Create A Relational Schema For Each Of The Following Diagrams Using The Following Notation T 3 (46.44 KiB) Viewed 19 times
