1. (Circuits) Create the following circuits in Logisim as you have seen the instructor do on the lectures. DO NOT use bu

[answerhappygod]

1 Circuits Create The Following Circuits In Logisim As You Have Seen The Instructor Do On The Lectures Do Not Use Bu 1 (12.94 KiB) Viewed 33 times

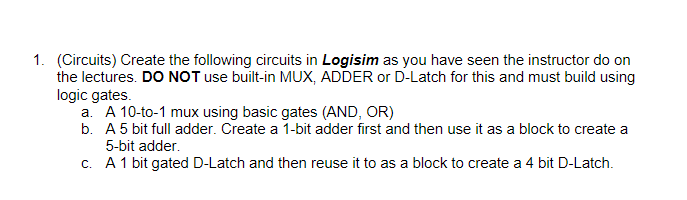

1. (Circuits) Create the following circuits in Logisim as you have seen the instructor do on the lectures. DO NOT use built-in MUX, ADDER or D-Latch for this and must build using logic gates. a. A 10-to-1 mux using basic gates (AND, OR) b. A 5 bit full adder. Create a 1-bit adder first and then use it as a block to create a 5-bit adder. c. A 1 bit gated D-Latch and then reuse it to as a block to create a 4 bit D-Latch.
