4 a. Figure 3.39 shows a logic circuit that appears in many of today's processors. Each of the boxes is a full-adder cir
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
4 a. Figure 3.39 shows a logic circuit that appears in many of today's processors. Each of the boxes is a full-adder cir

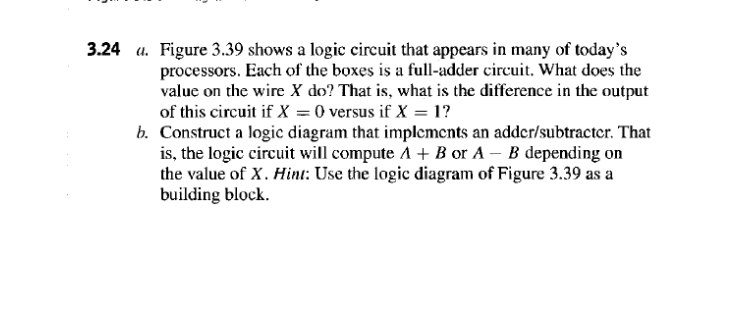

4 a. Figure 3.39 shows a logic circuit that appears in many of today's processors. Each of the boxes is a full-adder circuit. What does the value on the wire X do? That is, what is the difference in the output of this circuit if X=0 versus if X=1 ? b. Construct a logic diagram that implements an adder/subtracter. That is, the logic circuit will compute Λ+B or A−B depending on the value of X. Hint: Use the logic diagram of Figure 3.39 as a building block.
