The structure shown consists of a beam AB and of angle type rigid member welded to the beam AB at D. Answer the followin

Post by answerhappygod »

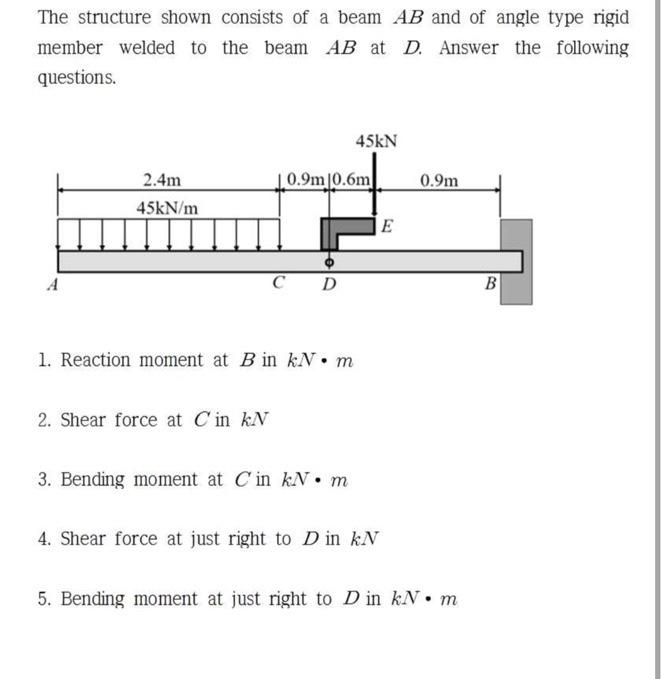

The Structure Shown Consists Of A Beam Ab And Of Angle Type Rigid Member Welded To The Beam Ab At D Answer The Followin 1
The Structure Shown Consists Of A Beam Ab And Of Angle Type Rigid Member Welded To The Beam Ab At D Answer The Followin 1 (36.66 KiB) Viewed 26 times
The structure shown consists of a beam AB and of angle type rigid member welded to the beam AB at D. Answer the following questions. 45kN 0.9m|0.6m 0.9m 2.4m 45kN/m E D B 1. Reaction moment at B in kv.m 2. Shear force at C in KN 3. Bending moment at Cin kNm 4. Shear force at just right to D in kN 5. Bending moment at just right to D in kN.m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
