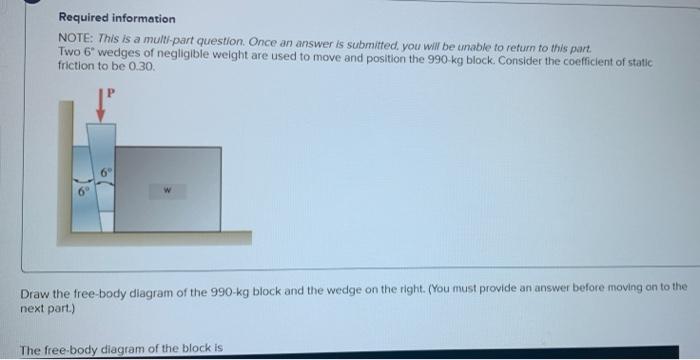

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part Two 6" wedges of negligible weight are used to move and position the 990 kg block. Consider the coefficient of static friction to be 0.30 Draw the free-body diagram of the 990 kg block and the wedge on the right. (You must provide an answer before moving on to the next part.) The free-body diagram of the block is

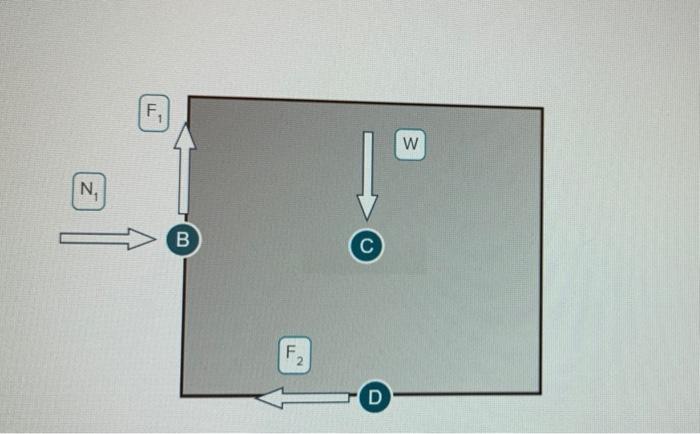

F, 3 N B D

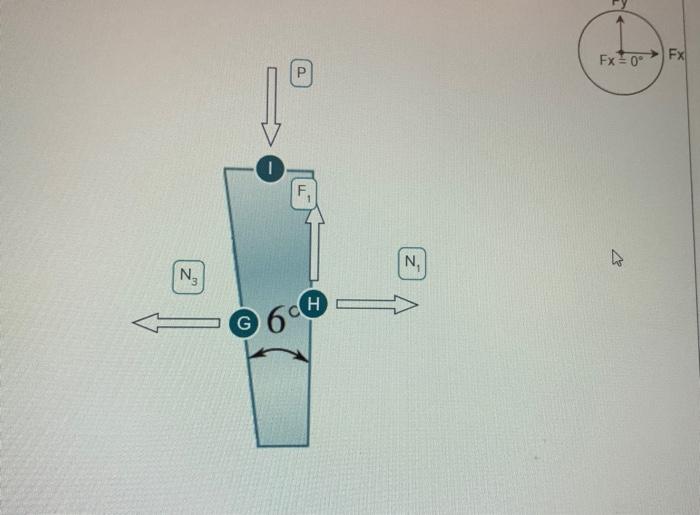

Fx ²0° Fx ח. N. Ng H D G
