Look at the picture below. Current i(t) will arise in the series RLC circuit when a voltage source v(t) is applied. Assu

Post by answerhappygod »

Look At The Picture Below Current I T Will Arise In The Series Rlc Circuit When A Voltage Source V T Is Applied Assu 1
Look At The Picture Below Current I T Will Arise In The Series Rlc Circuit When A Voltage Source V T Is Applied Assu 1 (79.93 KiB) Viewed 44 times

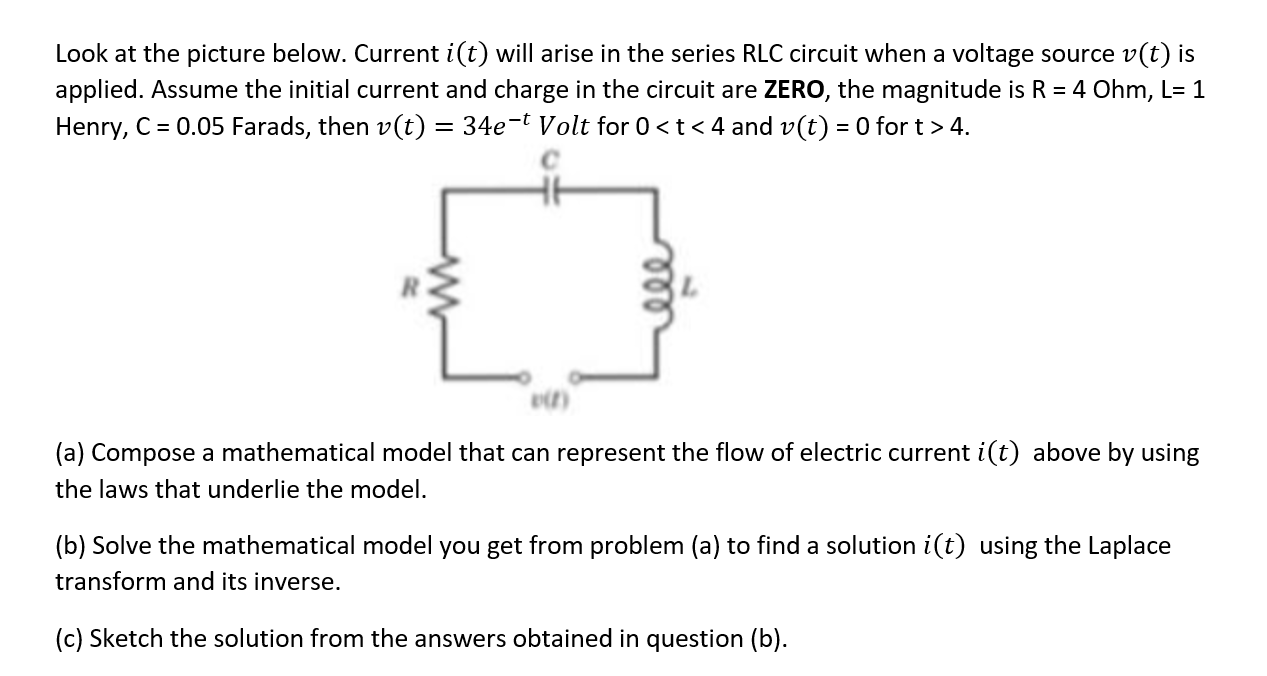

Look at the picture below. Current i(t) will arise in the series RLC circuit when a voltage source v(t) is applied. Assume the initial current and charge in the circuit are ZERO, the magnitude is R = 4 Ohm, L= 1 Henry, C = 0.05 Farads, then v(t) = 34e-t Volt for 0<t<4 and v(t) = 0 for t> 4. (a) Compose a mathematical model that can represent the flow of electric current i(t) above by using the laws that underlie the model. (b) Solve the mathematical model you get from problem (a) to find a solution i(t) using the Laplace transform and its inverse. (c) Sketch the solution from the answers obtained in question (b).
