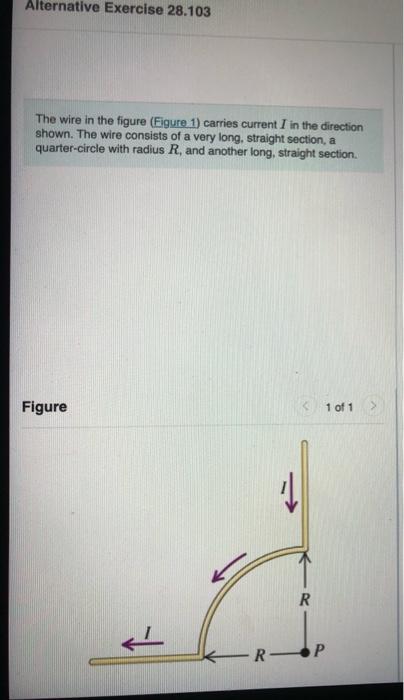

Alternative Exercise 28.103 The wire in the figure (Eigure 1) carries current I in the direction shown. The wire consists of a very long, straight section, a quarter-circle with radius R, and another long, straight section. Figure < 1 of 1 R If R- OP

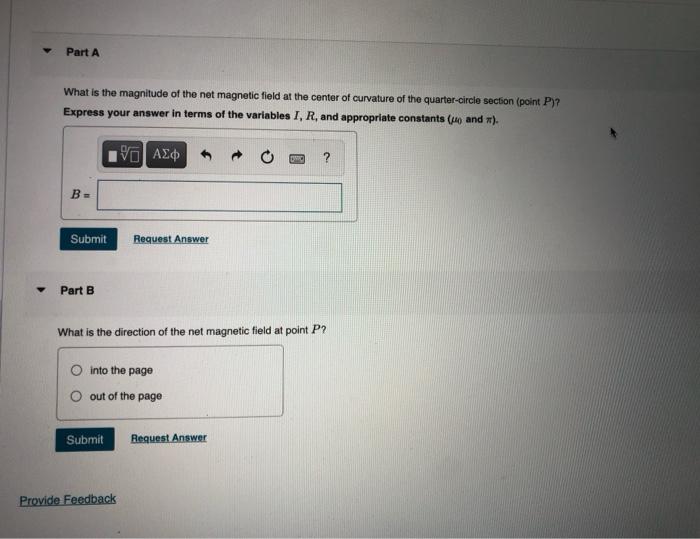

Part A What is the magnitude of the net magnetic field at the center of curvature of the quarter-circle section (point P)? Express your answer in terms of the variables I, R, and appropriate constants (0 and ). 190 AED ? BE Submit Request Answer Part B What is the direction of the net magnetic field at point P? into the page out of the page Submit Request Answer Provide Feedback
