The figure below is a cross-sectional view of a coaxial cable. The center conductor is surrounded by a rubber layer, an

[answerhappygod]

The Figure Below Is A Cross Sectional View Of A Coaxial Cable The Center Conductor Is Surrounded By A Rubber Layer An 1 (25.45 KiB) Viewed 51 times

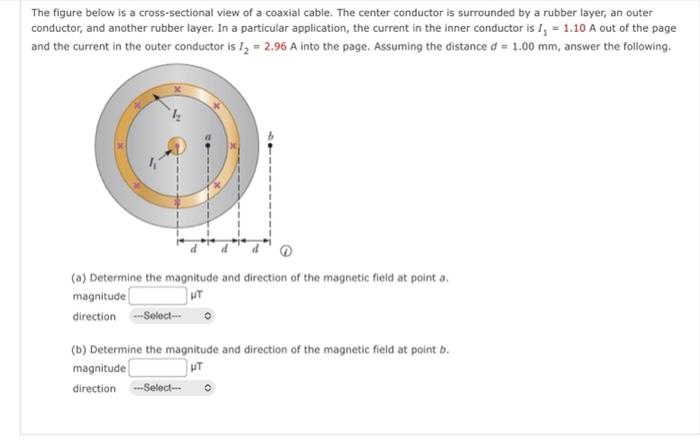

The figure below is a cross-sectional view of a coaxial cable. The center conductor is surrounded by a rubber layer, an outer conductor, and another rubber layer. In a particular application, the current in the inner conductor is I, - 1.10 A out of the page and the current in the outer conductor is 12 = 2.96 A into the page. Assuming the distance d = 1.00 mm, answer the following. (a) Determine the magnitude and direction of the magnetic field at point a magnitude HT direction --Select- (b) Determine the magnitude and direction of the magnetic field at point b. magnitude WT direction ---Select-
