Q4. A simply-supported beam shown in Figure Q4 below. The load F = 5 + last digit of your banner ID (in kN). For example

Post by answerhappygod »

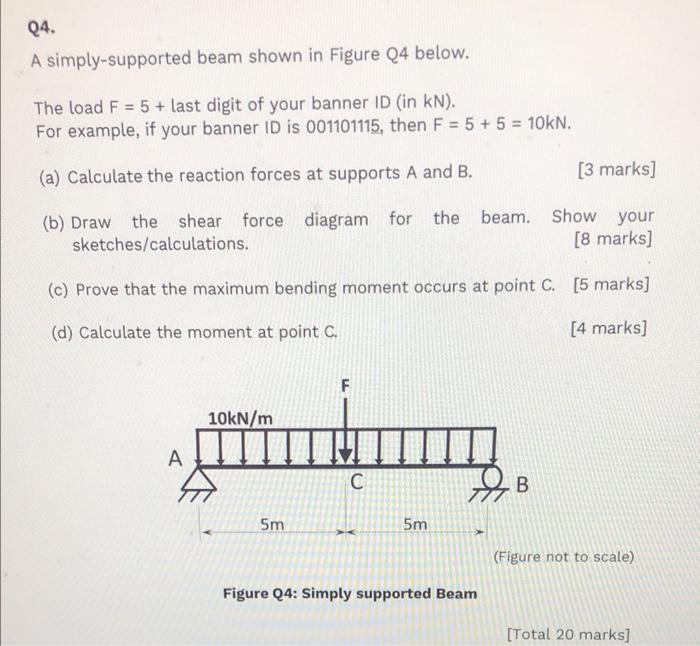

Q4 A Simply Supported Beam Shown In Figure Q4 Below The Load F 5 Last Digit Of Your Banner Id In Kn For Example 1
Q4 A Simply Supported Beam Shown In Figure Q4 Below The Load F 5 Last Digit Of Your Banner Id In Kn For Example 1 (58.09 KiB) Viewed 32 times
Q4. A simply-supported beam shown in Figure Q4 below. The load F = 5 + last digit of your banner ID (in kN). For example, if your banner ID is 001101115, then F = 5 + 5 = 10kn. (a) Calculate the reaction forces at supports A and B. [3 marks] (b) Draw the shear force diagram sketches/calculations. for the beam. Show your [8 marks] (c) Prove that the maximum bending moment occurs at point C. [5 marks] (d) Calculate the moment at point C. [4 marks] F 10kN/m A С B 5m 5m (Figure not to scale) Figure Q4: Simply supported Beam [Total 20 marks]
