A simple binary communication channel canties messages by using two signals 0 and 1. It was assumed that for a given bin

[answerhappygod]

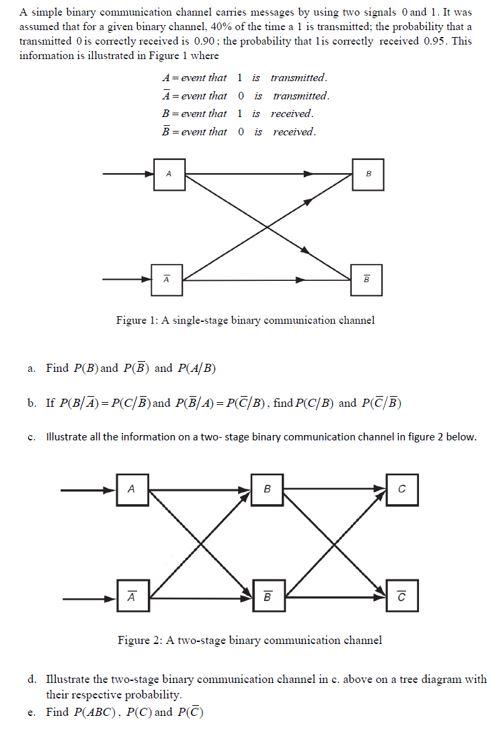

A Simple Binary Communication Channel Canties Messages By Using Two Signals 0 And 1 It Was Assumed That For A Given Bin 1 (45.05 KiB) Viewed 36 times

A simple binary communication channel canties messages by using two signals 0 and 1. It was assumed that for a given binary channel. 40% of the time a l is transmitted the probability that a transmitted 0 is correctly received is 0.90: the probability that lis correctly received 0.95. This information is illustrated in Figure 1 where A - event that 1 is transmitted. A = event that is transmitted. B = event that is received = event that is received J A 10 Figure 1: A single-stage binary communication channel a. Find P(B) and P(B) and P(A/B) b. If P(B/A)=P(C/B) and P(B/A)=P(C/B). find PC/B) and PC/B) c. illustrate all the information on a two-stage binary communication channel in figure 2 below. 00 B A в ICO 10 Figure 2: A two-stage binary communication channel d. Illustrate the two-stage binary communication channel in c. above on a tree diagram with their respective probability e. Find P(ABC). P(C) and PC)
