A 10 lb block is suspended in a vertical plane by two springs and a dashpot as shown. If the block is displaced 7 in. ab

Post by answerhappygod »

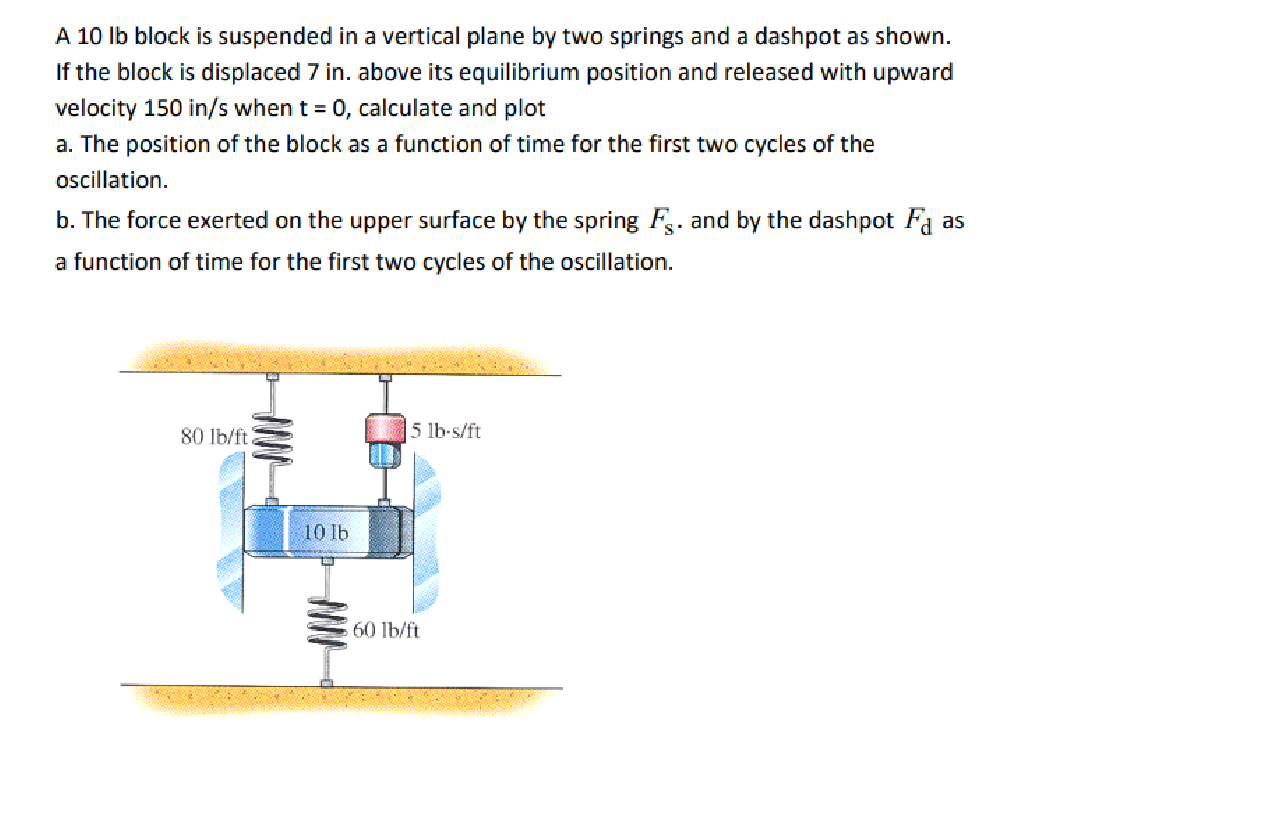

A 10 Lb Block Is Suspended In A Vertical Plane By Two Springs And A Dashpot As Shown If The Block Is Displaced 7 In Ab 1
A 10 Lb Block Is Suspended In A Vertical Plane By Two Springs And A Dashpot As Shown If The Block Is Displaced 7 In Ab 1 (131.55 KiB) Viewed 66 times
A 10 lb block is suspended in a vertical plane by two springs and a dashpot as shown. If the block is displaced 7 in. above its equilibrium position and released with upward velocity 150 in/s when t = 0, calculate and plot a. The position of the block as a function of time for the first two cycles of the oscillation. b. The force exerted on the upper surface by the spring F. and by the dashpot Fa as a function of time for the first two cycles of the oscillation. 80 lb/ft 5 lb-s/ft 10 lb 60 lb/ft
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
