SOLID MECHANICS. MECHANICAL ENGINEERING. CAN I HAVE THE ANSWER FOR A . HOW TO CALCUTALTE REACTION AND THE COMPLETE ANSWE

[answerhappygod]

SOLID MECHANICS. MECHANICAL ENGINEERING. CAN I HAVE THE ANSWER
FOR A . HOW TO CALCUTALTE REACTION AND THE COMPLETE ANSWER

Solid Mechanics Mechanical Engineering Can I Have The Answer For A How To Calcutalte Reaction And The Complete Answe 1 (97.09 KiB) Viewed 36 times

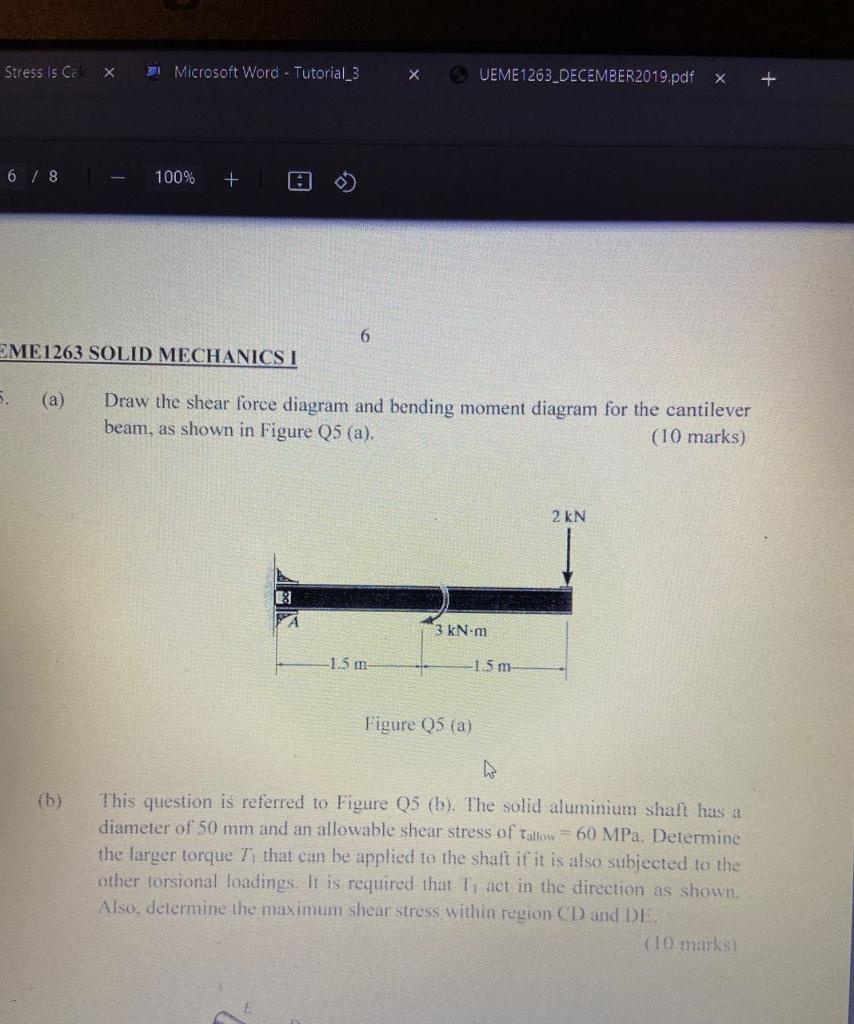

Stress is Co х Microsoft Word - Tutorial_3 х SUEME 1263_DECEMBER 2019.pdf х + 6 / 8 100% + 6 EME1263 SOLID MECHANICS I 5. (a) Draw the shear force diagram and bending moment diagram for the cantilever beam, as shown in Figure Q5 (a). (10 marks) 2 KN A 3 kN.m 1.5 m -1.5 m Figure Q5 (a) (b) This question is referred to Figure Q5 (b). The solid aluminium shall has a diameter of 50 mm and an allowable shear stress of Tatlow = 60 MPa. Determine the larger torque T that can be applied to the shaft if it is also subjected to the other torsional loadings. It is required that I act in the direction as shown Also, determine the maximum shear stress within region CD and DE (10 marks
