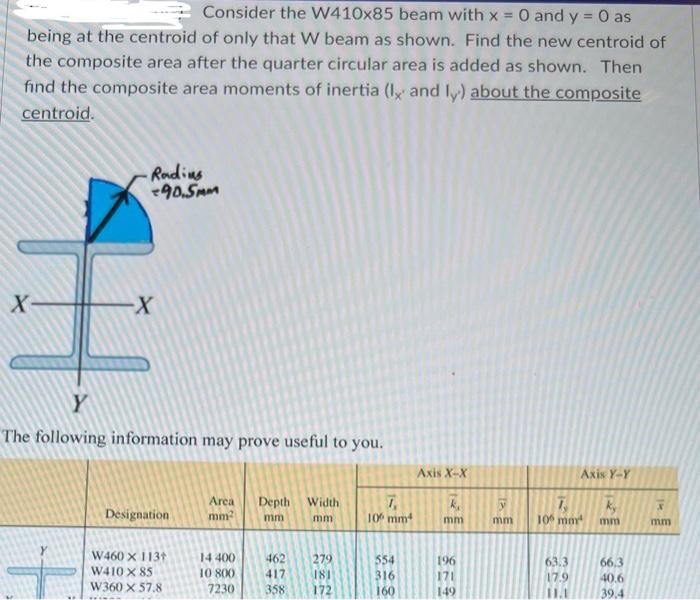

Consider the W410x85 beam with x = 0 and y = 0 as being at the centroid of only that w beam as shown. Find the new centroid of the composite area after the quarter circular area is added as shown. Then find the composite area moments of inertia (ly and ly) about the composite centroid. • Radius 40.5mm SH X X The following information may prove useful to you. Axis X-X Axis Y-Y Area Width Depth mim ki Designation 1, 100 mm mm ky 7 106 mm חות . mm וחתו mm רוח W460 X 1131 W410 X 85 W360 X 57.8 14 400 10 800 7230 462 417 358 279 181 172 554 316 160 196 171 149 63.3 17.9 66,3 40.6 39.4
