For the structure shown below, find the total normal stress at point D. 3 m 1.5 m C 2.5 m A1 D 125 mm 1.5 m 50 kN/m B 4

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

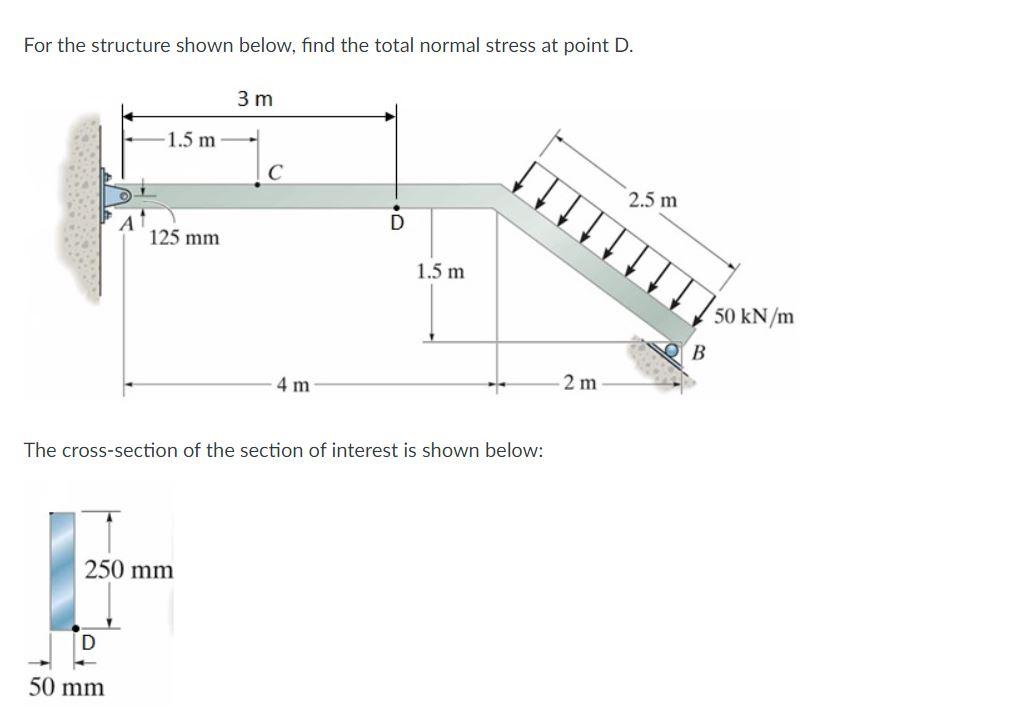

For the structure shown below, find the total normal stress at point D. 3 m 1.5 m C 2.5 m A1 D 125 mm 1.5 m 50 kN/m B 4

Post by answerhappygod »

For The Structure Shown Below Find The Total Normal Stress At Point D 3 M 1 5 M C 2 5 M A1 D 125 Mm 1 5 M 50 Kn M B 4 1
For The Structure Shown Below Find The Total Normal Stress At Point D 3 M 1 5 M C 2 5 M A1 D 125 Mm 1 5 M 50 Kn M B 4 1 (40.41 KiB) Viewed 46 times
I need help with both please!
For the structure shown below, find the total normal stress at point D. 3 m 1.5 m C 2.5 m A1 D 125 mm 1.5 m 50 kN/m B 4 m 2 m The cross-section of the section of interest is shown below: 250 mm D 50 mm
For the structure shown below, find the shear stress at the neutral axis 3m from point A. 3 m 1.5 m с 2.5 m D 125 mm 1.5 m 50 kN/m B 4 m 2 m The cross-section is shown below: 250 mm D 50 mm
