C- the effect of adding zeros to second order system?
D- what is the unwanted "non preferable" value of zeros in second order system?

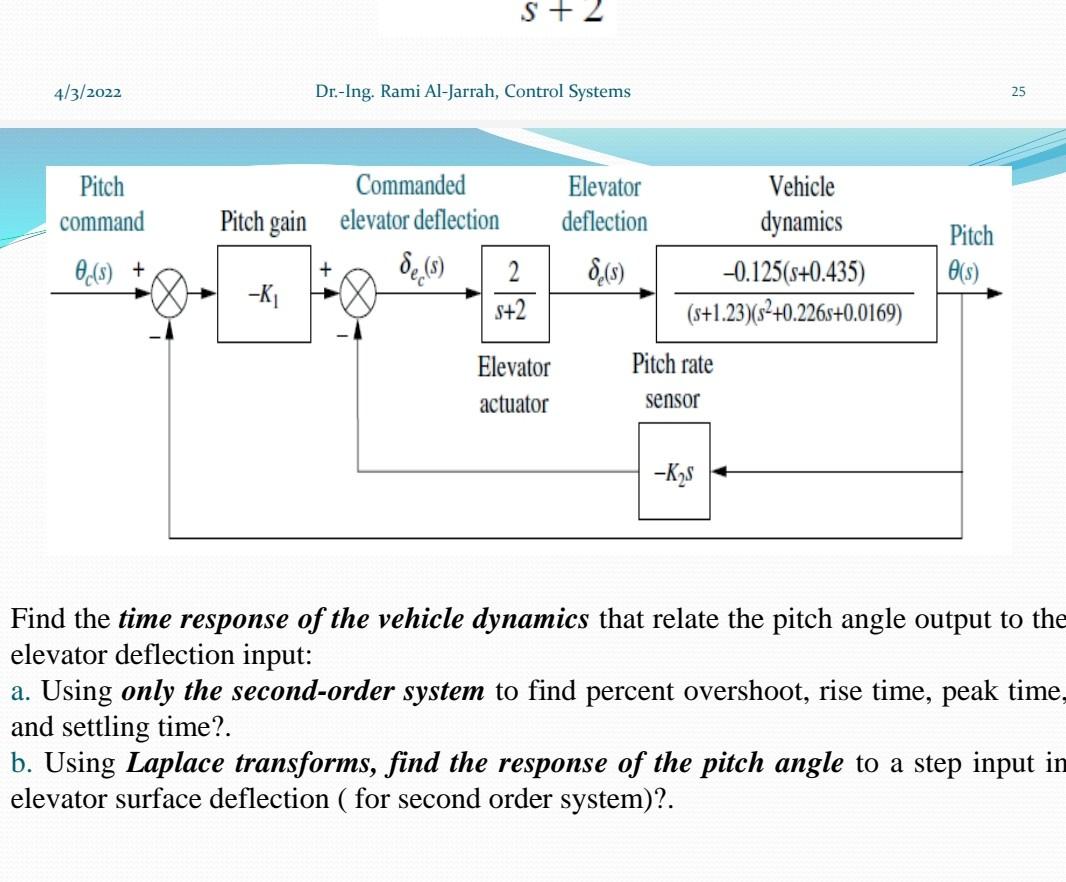

S + 2 4/3/2022 Dr.-Ing. Rami Al-Jarrah, Control Systems 25 Pitch command Elevator deflection Commanded Pitch gain elevator deflection 8, (3) 2 -K S+2 Vehicle dynamics -0.125(s+0.435) (s+1.23)(s2+0.226s+0.0169) Pitch 0() 0.(8) + + 8(3) Elevator Pitch rate actuator sensor -K2S Find the time response of the vehicle dynamics that relate the pitch angle output to the elevator deflection input: a. Using only the second-order system to find percent overshoot, rise time, peak time, and settling time?. b. Using Laplace transforms, find the response of the pitch angle to a step input in elevator surface deflection ( for second order system)?.
