A cantilever beam is under four transverse forces at the application points shown. The beam has a thin-wall cross-sectio

Post by answerhappygod »

A Cantilever Beam Is Under Four Transverse Forces At The Application Points Shown The Beam Has A Thin Wall Cross Sectio 1
A Cantilever Beam Is Under Four Transverse Forces At The Application Points Shown The Beam Has A Thin Wall Cross Sectio 1 (77.13 KiB) Viewed 44 times
EF = 40

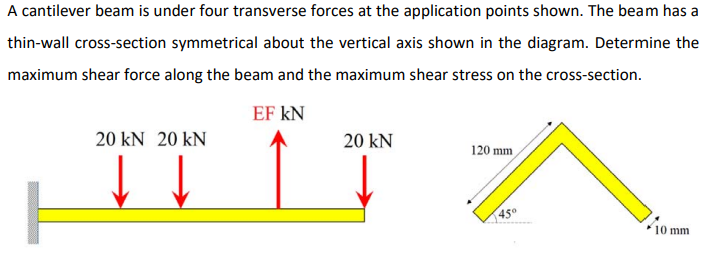

A cantilever beam is under four transverse forces at the application points shown. The beam has a thin-wall cross-section symmetrical about the vertical axis shown in the diagram. Determine the maximum shear force along the beam and the maximum shear stress on the cross-section. EF KN 20 kN 20 kN 20 kN 120 mm 10 mm
