0 1 05 A L - 2.33 L2.22 03 AP = 3.06 L-1.0 31 А 009 L = 2.06 P 7 5 B Follow the steps below to graphically illustrate an
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
0 1 05 A L - 2.33 L2.22 03 AP = 3.06 L-1.0 31 А 009 L = 2.06 P 7 5 B Follow the steps below to graphically illustrate an

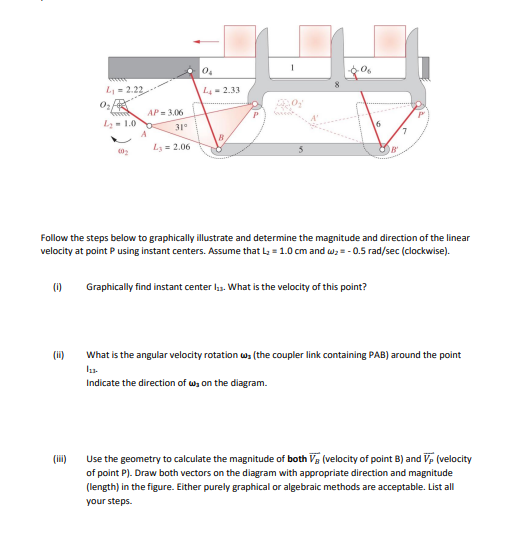

0 1 05 A L - 2.33 L2.22 03 AP = 3.06 L-1.0 31 А 009 L = 2.06 P 7 5 B Follow the steps below to graphically illustrate and determine the magnitude and direction of the linear velocity at point P using instant centers. Assume that L = 1.0 cm and wz=-0.5 rad/sec (clockwise). (0) Graphically find instant center lys. What is the velocity of this point? (ii) What is the angular velocity rotation W(the coupler link containing PAB) around the point Indicate the direction of W, on the diagram. (II) Use the geometry to calculate the magnitude of both V(velocity of point B) and VP (velocity of point P). Draw both vectors on the diagram with appropriate direction and magnitude (length) in the figure. Either purely graphical or algebraic methods are acceptable. List all your steps.
