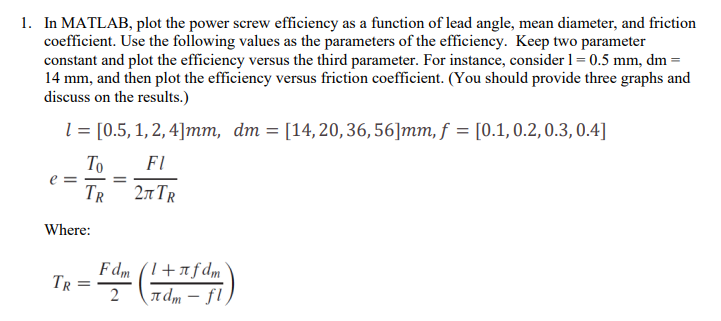

1. In MATLAB, plot the power screw efficiency as a function of lead angle, mean diameter, and friction coefficient. Use the following values as the parameters of the efficiency. Keep two parameter constant and plot the efficiency versus the third parameter. For instance, consider 1 = 0.5 mm, dm = 14 mm, and then plot the efficiency versus friction coefficient. (You should provide three graphs and discuss on the results.) 1 = [0.5, 1, 2, 4]mm, dm = [14, 20,36,56]mm, f = [0.1,0.2, 0.3, 0.4] То FI TR 2TR = Where: TR Fdm (1 + ifdm 2 A dm - f1 ( )
