Part A The 40-lb flywheel A has a radius of gyration about its center of 4 in. Disk B weighs 60 lb and is coupled to the

[answerhappygod]

Part A The 40 Lb Flywheel A Has A Radius Of Gyration About Its Center Of 4 In Disk B Weighs 60 Lb And Is Coupled To The 1 (81.97 KiB) Viewed 53 times

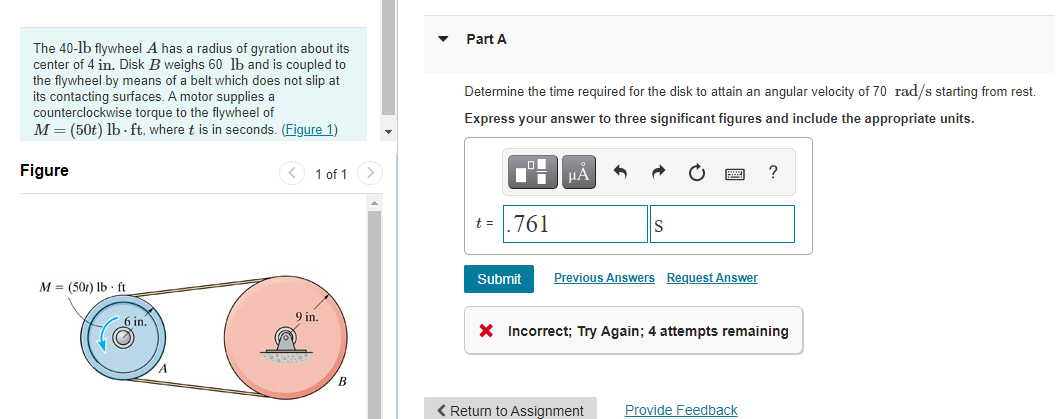

Part A The 40-lb flywheel A has a radius of gyration about its center of 4 in. Disk B weighs 60 lb and is coupled to the flywheel by means of a belt which does not slip at its contacting surfaces. A motor supplies a counterclockwise torque to the flywheel of M = (50t) lb-ft, where t is in seconds. (Figure 1) Determine the time required for the disk to attain an angular velocity of 70 rad/s starting from rest. Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 μΑ ? t = 761 S Submit Previous Answers Request Answer M = (501) lb. ft 9 in. X Incorrect; Try Again; 4 attempts remaining B < Return to Assignment Provide Feedback
