Part A The A-36 steel pipe in (Figure 1) has a 6061-T6 aluminum core. It is subjected to a tensile force of 200 kN. The

[answerhappygod]

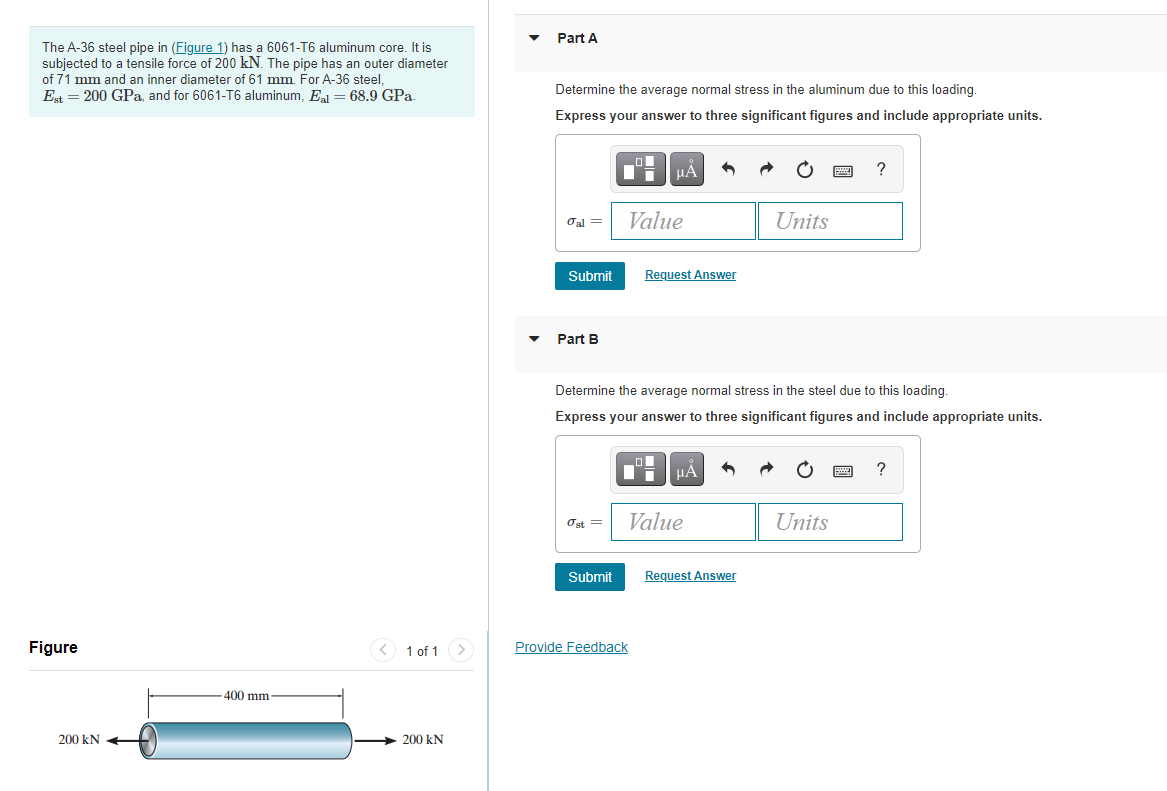

Part A The A 36 Steel Pipe In Figure 1 Has A 6061 T6 Aluminum Core It Is Subjected To A Tensile Force Of 200 Kn The 1 (50.46 KiB) Viewed 20 times

Part A The A-36 steel pipe in (Figure 1) has a 6061-T6 aluminum core. It is subjected to a tensile force of 200 kN. The pipe has an outer diameter of 71 mm and an inner diameter of 61 mm For A-36 steel, Est = 200 GPa, and for 6061-T6 aluminum, Eal = 68.9 GPa. Determine the average normal stress in the aluminum due to this loading. Express your answer to three significant figures and include appropriate units. li μΑ ? Oal = Value Units Submit Request Answer Part B Determine the average normal stress in the steel due to this loading. Express your answer to three significant figures and include appropriate units. li μΑ ? Ost = Value Units Submit Request Answer Figure < 1 of 1 > Provide Feedback 400 mm 200 KN 200 KN
