a = The uniform 20 kg slender bar AC rotates in a vertical plane about the pin at B. The spring AD has a spring constant

Post by answerhappygod »

A The Uniform 20 Kg Slender Bar Ac Rotates In A Vertical Plane About The Pin At B The Spring Ad Has A Spring Constant 1
A The Uniform 20 Kg Slender Bar Ac Rotates In A Vertical Plane About The Pin At B The Spring Ad Has A Spring Constant 1 (181.52 KiB) Viewed 23 times

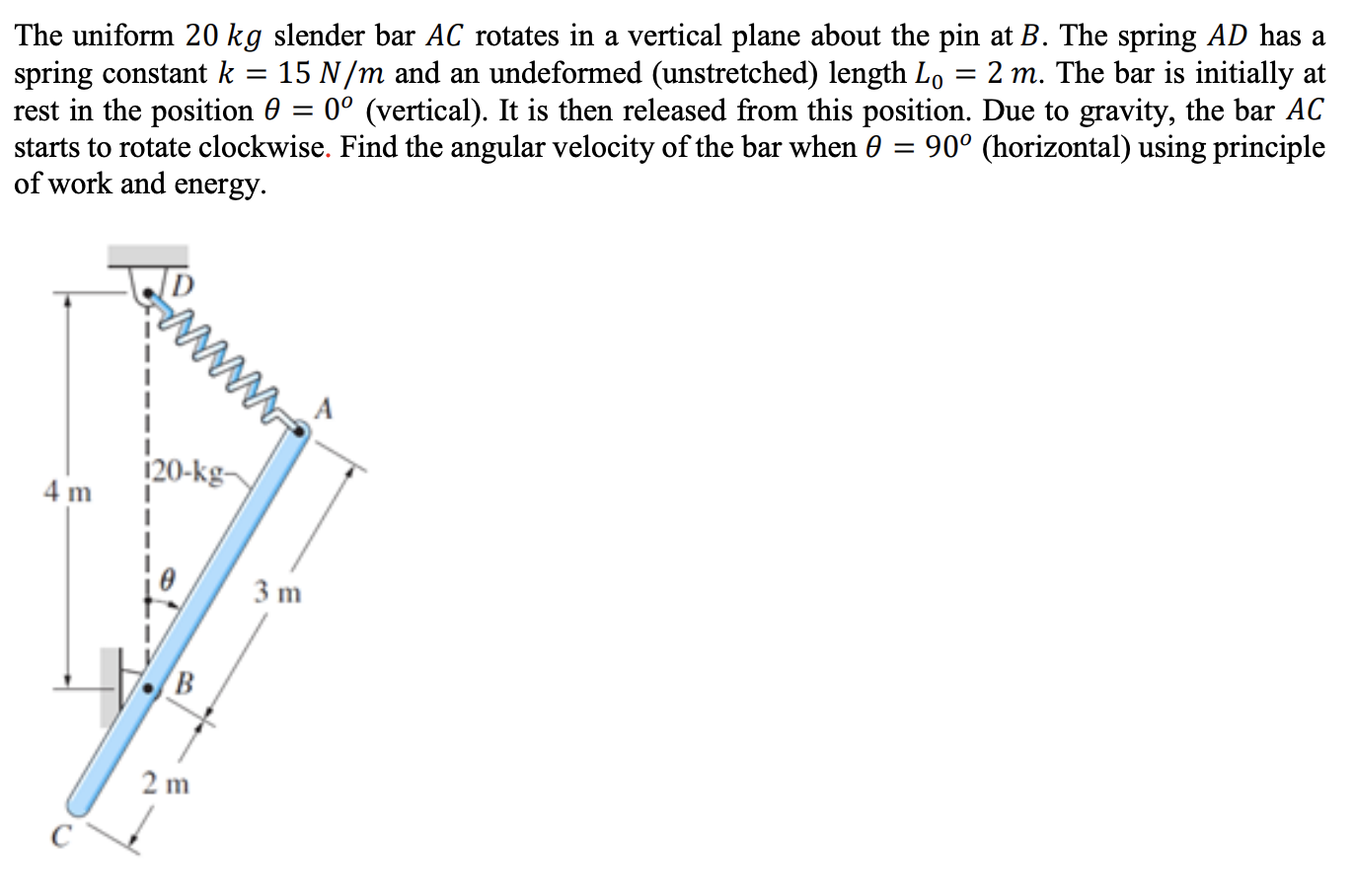

a = The uniform 20 kg slender bar AC rotates in a vertical plane about the pin at B. The spring AD has a spring constant k = 15 N/m and an undeformed (unstretched) length Lo = 2 m. The bar is initially at rest in the position 0 = 0º (vertical). It is then released from this position. Due to gravity, the bar AC starts to rotate clockwise. Find the angular velocity of the bar when 0 90° (horizontal) using principle of work and energy. = = no D 120-kg- 4 m 3 m B 2 m
